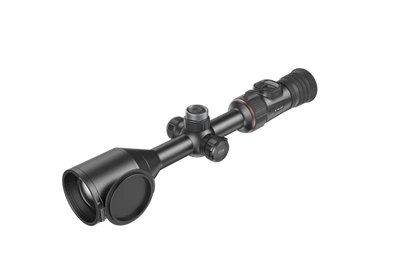

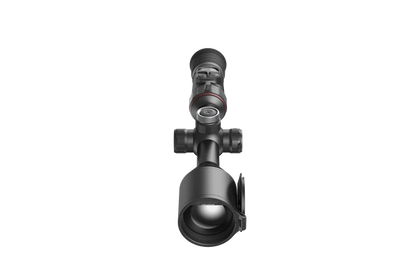

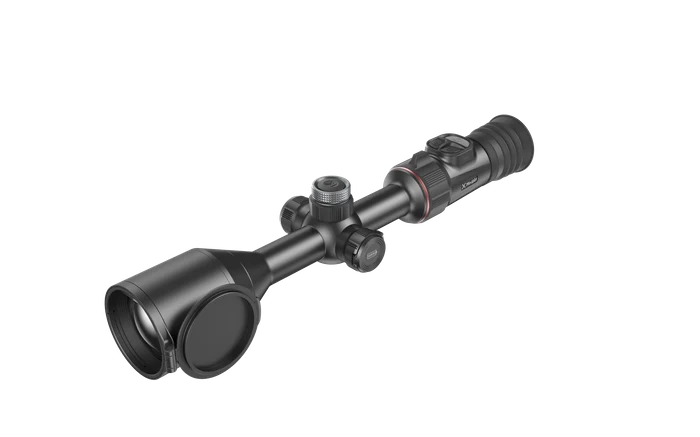

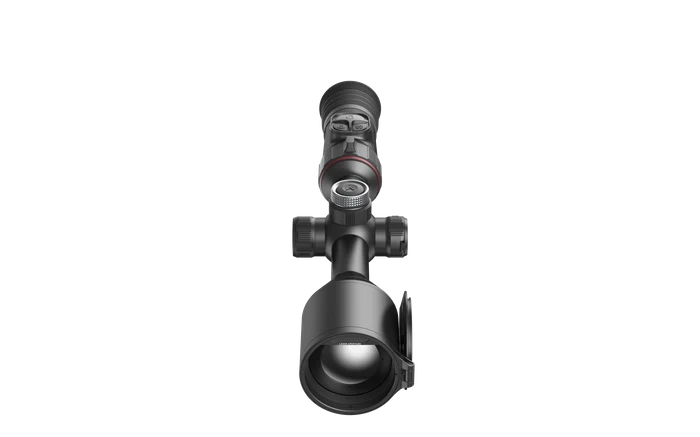

Nocpix ACE 2 S60R Thermal Scope – 1280 Sensor Flagship with LRF 2.0 and Ballistics

Integrated LRF 2.0 and Ballistic System

LRF 2.0 delivers distance data with 11% sharper optics and 57% faster ranging in tough conditions, out to 1200 m (±1 m). The onboard ballistic system works out the hold using distance, angle, wind drift and environmental factors so you can take a confident shot when it counts.

1280 × 1024 Gen 3 Sensor, NETD ≤12 mK

The S60R is powered by Nocpix’s self-developed 1280 × 1024 thermal sensor with NETD ≤12 mK. Combined with an F1.0 ultra-large aperture and the upgraded R+ 2.0 AI algorithm, it delivers sharper detail, cleaner images and stronger clarity in challenging conditions.

60 mm F1.0 Objective

The F60/1.0 objective opens a wide 14.7° × 11.7° field of view (25.6 × 20.5 m at 100 m), with 2–4× optical magnification and up to 28× maximum magnification for high-detail work at range.

Detection range is up to 3100 m (1.7 × 0.5 m target, Pn = 99%). Frame rate is selectable at 30/60 Hz.

Ocular Zoom 2.0

60 mm eye relief and a 10 mm exit pupil give up to 25% longer eye relief than the previous generation. Lossless hybrid zoom keeps reticle accuracy steady through the zoom range for clearer, more comfortable viewing at any magnification.

Magnesium Body and Low-Temp Battery

The high-strength magnesium alloy chassis is about 25% lighter than the previous generation. Runtime is up to 7 hours at 22°C, with solid cold-weather performance from the next-gen battery system. External Type-C power keeps you going when you need a top-up.

Intelligent Tracking and Central Focus

Integrated laser ranging and an electronic compass give instant target coordinates from a single measurement. The centrally placed focus wheel lets you dial focus without breaking your aiming position, even in low light.

Dual Clarity Mode and 5G Wi-Fi

Motion Mode keeps imaging smooth on moving targets. Still Mode sharpens fine detail for identification. One-tap app pairing remembers your device, and upgraded 5G Wi-Fi pushes transfers up to about 20 MB/s for video downloads and firmware updates. Photo and video recording, recoil-activated video, gallery playback and 64 GB of onboard memory are all built in.
