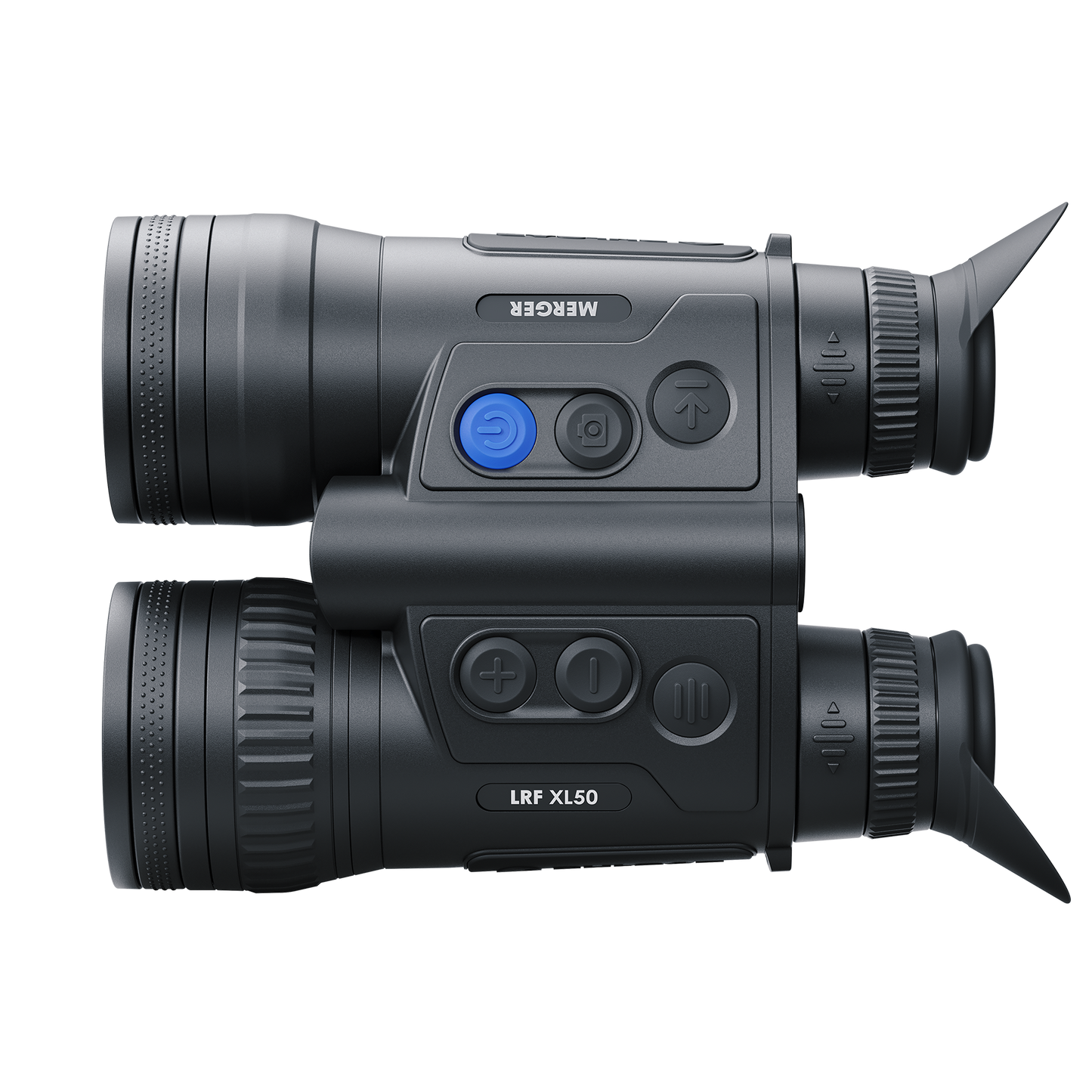

PULSAR MERGER LRF XL50 THERMAL BINOCULAR

PULSAR MERGER LRF XL50 THERMAL BINOCULAR

Regular price $10,799.00 AUD
Regular price Sale price $10,799.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:77481

Out of stock

View full details

New HD 1024x768 @ 12 µm thermal sensor

Merger LRF XL50 offers the next level of thermal imaging experience. The image generated by new 1024x768 pixels thermal sensor features high definition and rich detail. It is ideal for uncompromised trophy identification. Silhouettes, anatomy & behavioural peculiarities of animal are well visible clearly distinguishable.


High image detail across the whole magnification range 2.5-20x

Variable 2.5-20x magnification provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain high level of image detail over the entire magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.

Wide field of view

Merger LRF XL50 offers wide field of view for easy scanning and spotting. Explore landscapes in HD-quality with an wide 14 degrees FOV and optimal 2.5x magnification. Large-format sensor allows to have best-in-class FOV / magnification ratio even on high zoom levels, up to 20x.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Extra-long detection range

Powerful objective lens in combination with professional grade 12 µm / 1024x768 pix HD thermal imaging sensor provides exceptional detection capabilities. A standard 1,8m tall object can be detected at a 2300 m distance in complete darkness.

Classic binocular design

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.

Comfortable viewing experience with both eyes

The Merger LRF binoculars’ optical design fully takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 62 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder with 1000 m measuring distance

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Combined dual battery system

The Merger LRF XL50 is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.

3 levels of sensitivity amplification

Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range observation in diverse weather and temperature conditions. Amplification setting helps to define animal’s trophy features and ensures clear rendering of objects and background in the field of view.

Fast aperture F50/1.0 germanium lens

Germanium F50/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Merger LRF thermal imaging binoculars sensor is distinguished for its clarity and detailing.

Rugged magnesium alloy housing

Merger LRF is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics and increases consistency of the device operation during long-term observation.

Built-in photo and video recorder

The Merger LRF has a built-in video recorder. The internal memory of Merger LRF can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video. The footage is copied to a computer hard drive via a USB-C port. The Merger LRF owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via Wi-Fi.

Stream Vision 2. Wi-Fi integration with iOS and Android devices

Built-in Wi-Fi connects the Merger LRF to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

Dual Wi-Fi waveband support 2.4 / 5 GHz

In Merger LRF thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

High-contrast HD AMOLED displays

While the Merger’s HD AMOLED displays deliver crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution image, and power saving.

A selection of 8 colour palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Operation in extreme temperatures -25 to +50°C

Housing, power unit, optics and electronics of Merger LRF are designed with regard to applications in wide range of temperatures. Merger ensures reliable and effective performance in freezing cold up to -25°C.

Proximity sensor for covert use

Observation in the dark requires being covert, so that hunted animals are not alerted by your presence. Going to stand-by using Display Off feature is a usual way to prevent backlight from the eyepieces. To simplify this task Merger LRF has a built-in proximity sensor.
It acts as a display switch for preventing backlight exposure in the dark. When the unit is taken away from the eyes, proximity sensor switches both displays off and when the unit is brought closer both displays are switched on offering excellent image quality.

Accessories

APS Batteries

Interchangeable standard power supplies for Axion, Merger, Digex, Proton, Talion and Thermion devices.

Main
Sensor
HD 1024x768 @ 12 µm (NETD <40 mK)


Objective lens
F50 / 1.0


Magnification, x
2.5 – 20 (x8 zoom)


Field of view (HxV), degrees / m@100m
14x10.5 / 24.6x18.5


Detection range, m
2300


Sensor
Type
uncooled


Resolution, pixels
1024x768


Pixel pitch, µm
12


NETD, mK
<40


Frame rate, Hz
50


Optics
Objective lens
F50 / 1.0


Magnification, x
2.5 – 20


Field of view (HxV), degrees / m @ 100 m
14x10.5 / 24.6x18.5


Interpupillary distance adjustment, mm
62 – 74


Eye relief, mm
15


Display
Type
AMOLED HD


Resolution, pixels
1024x768


Range Performance
Detection range, m
2300


Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1


Wavelength, nm
905


Max. measuring range, m
1000


Measurement accuracy, m
± 1


Video Recorder
Video / photo resolution, pixel
1024x768


Video / photo format
.mp4 / .jpg


Built-in memory, GB
64


Wi-Fi
Wireless Protocol
Wi-Fi


Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)


Frequency, GHz
2.4 / 5


Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (waterproof)


Operating temperature range, °С
-25 – +50


Connections and Compatibilities
Mount, type
1/4" socket


Supported Application
Stream Vision 2


Power Supply
Output voltage, V
3.7


Battery type
Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)


Capacity, mAh
3200 (external) + 4000 (internal)


Operating time on battery pack (at t=22°C), h *
8


External power supply, V
5V, 9V (USB Type-C Power Delivery)


Weight & Size
Body material
Magnesium alloy


Dimensions, mm
197x140x72


Weight, kg
0.95 (batteries included)


Trade Data
SKU (Model #)
77481
