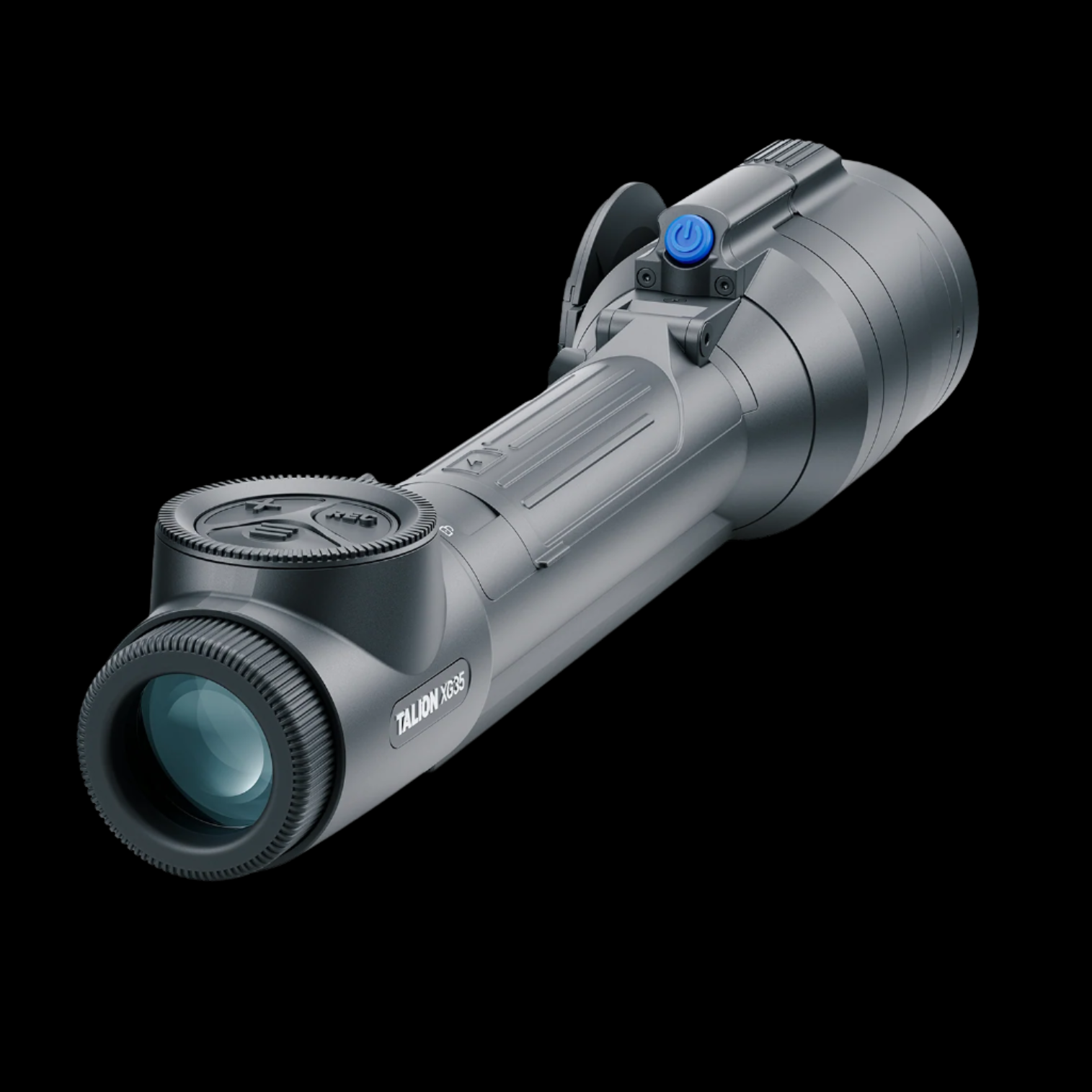

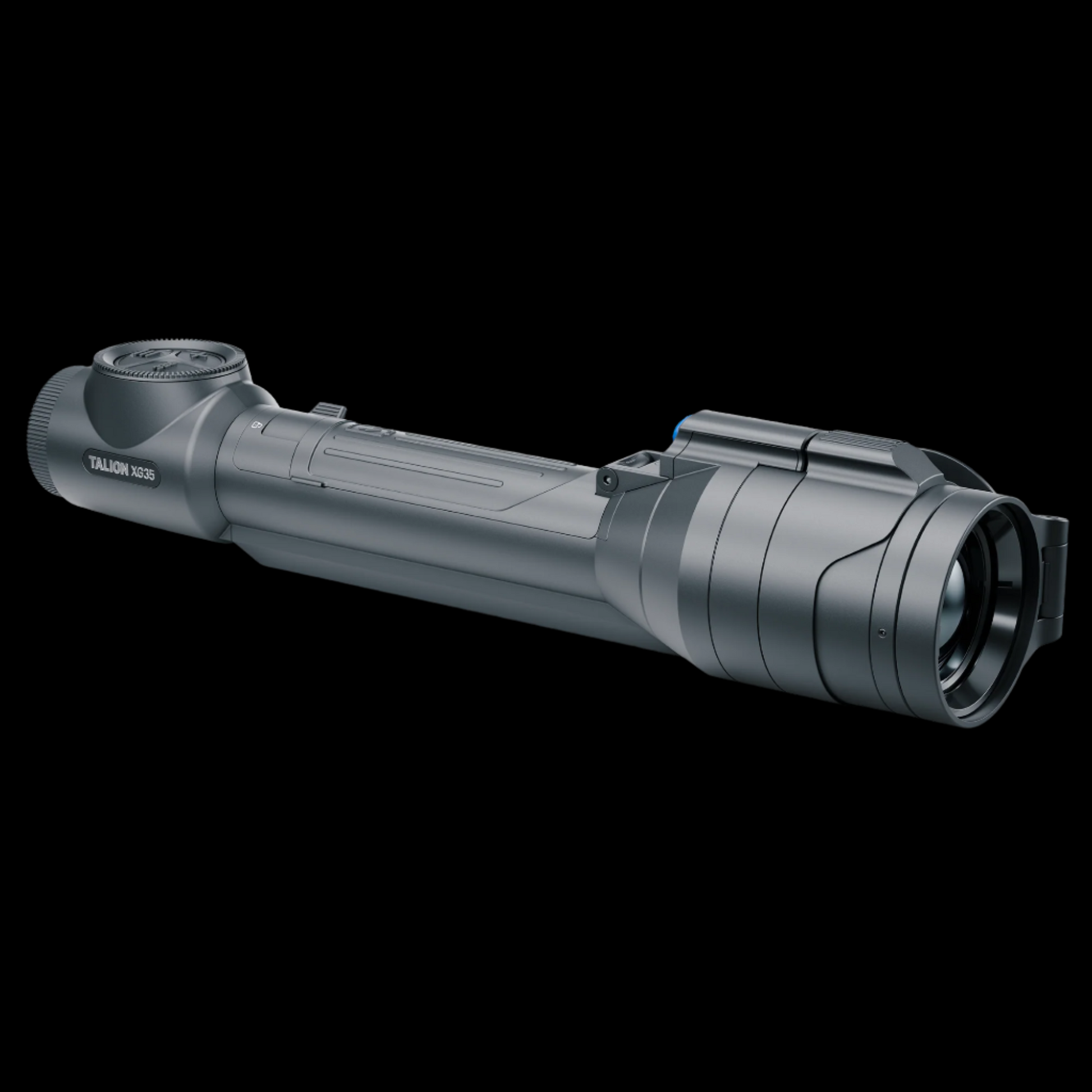

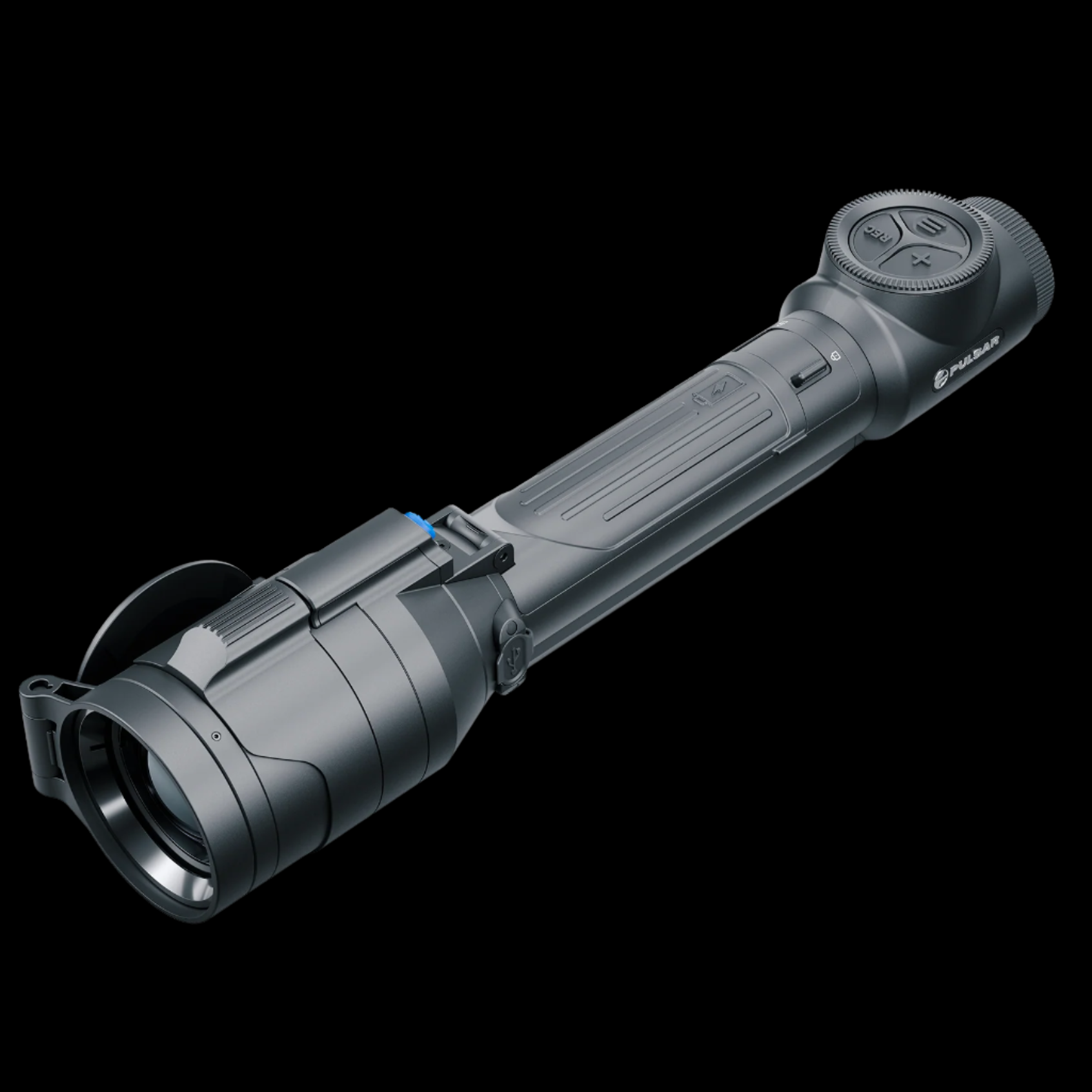

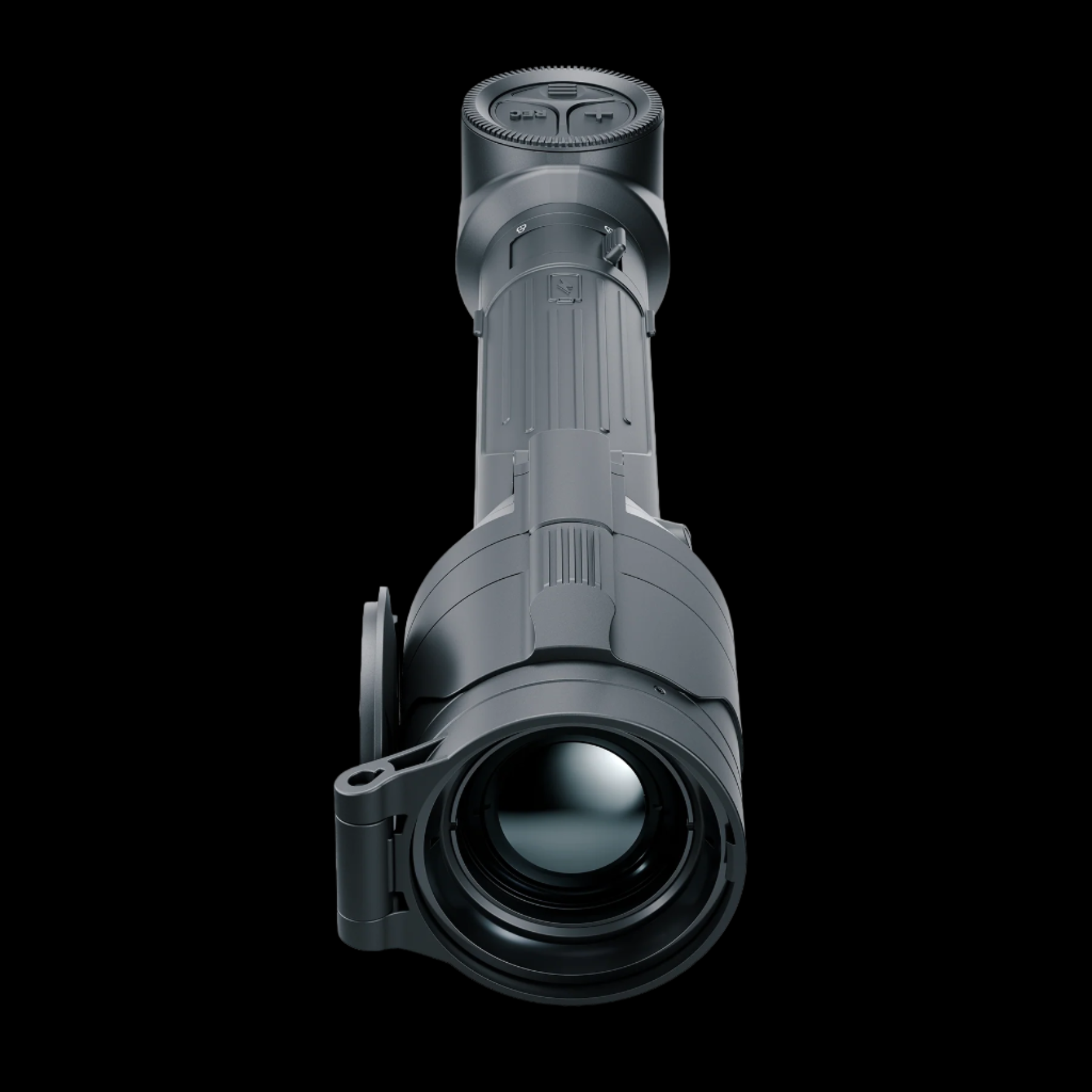

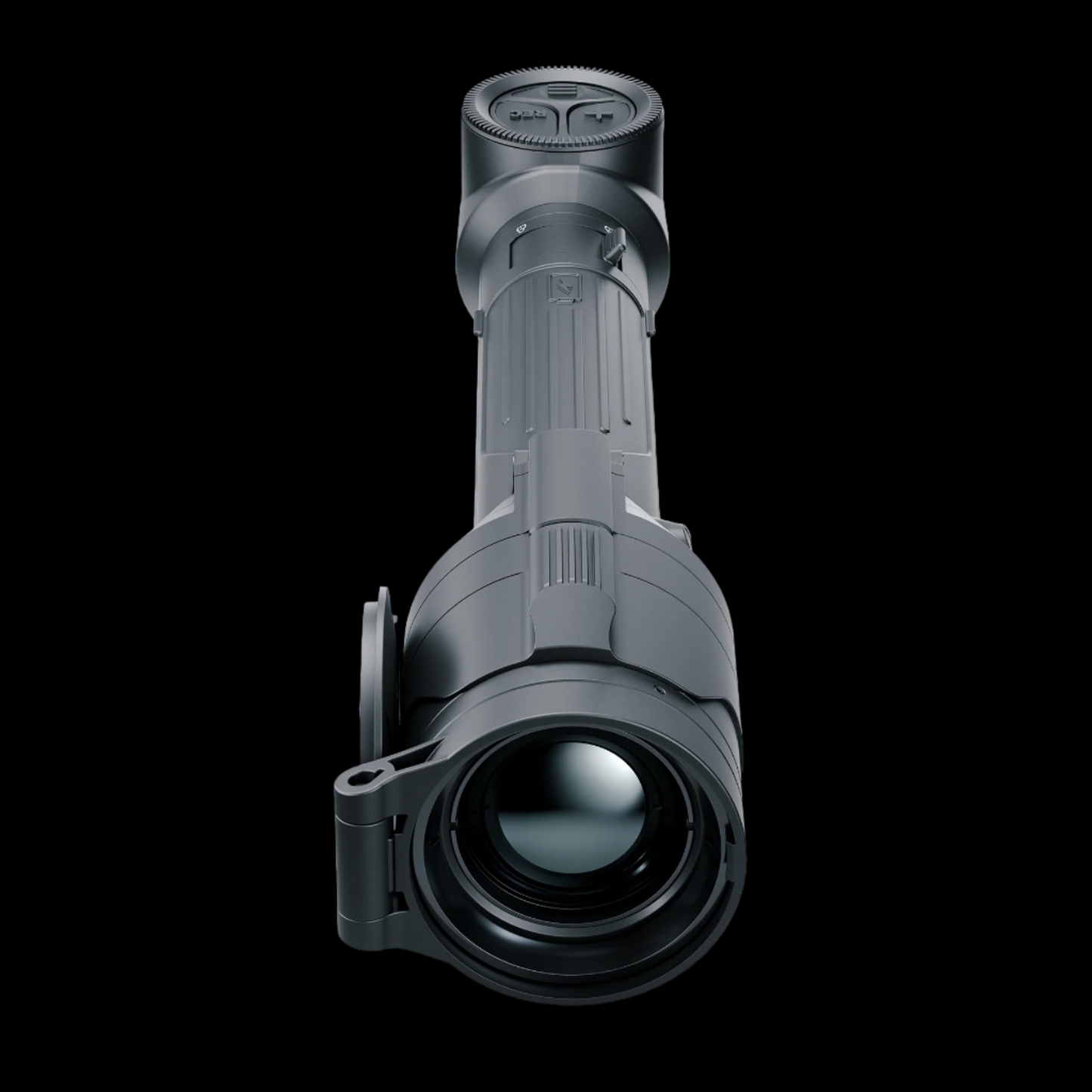

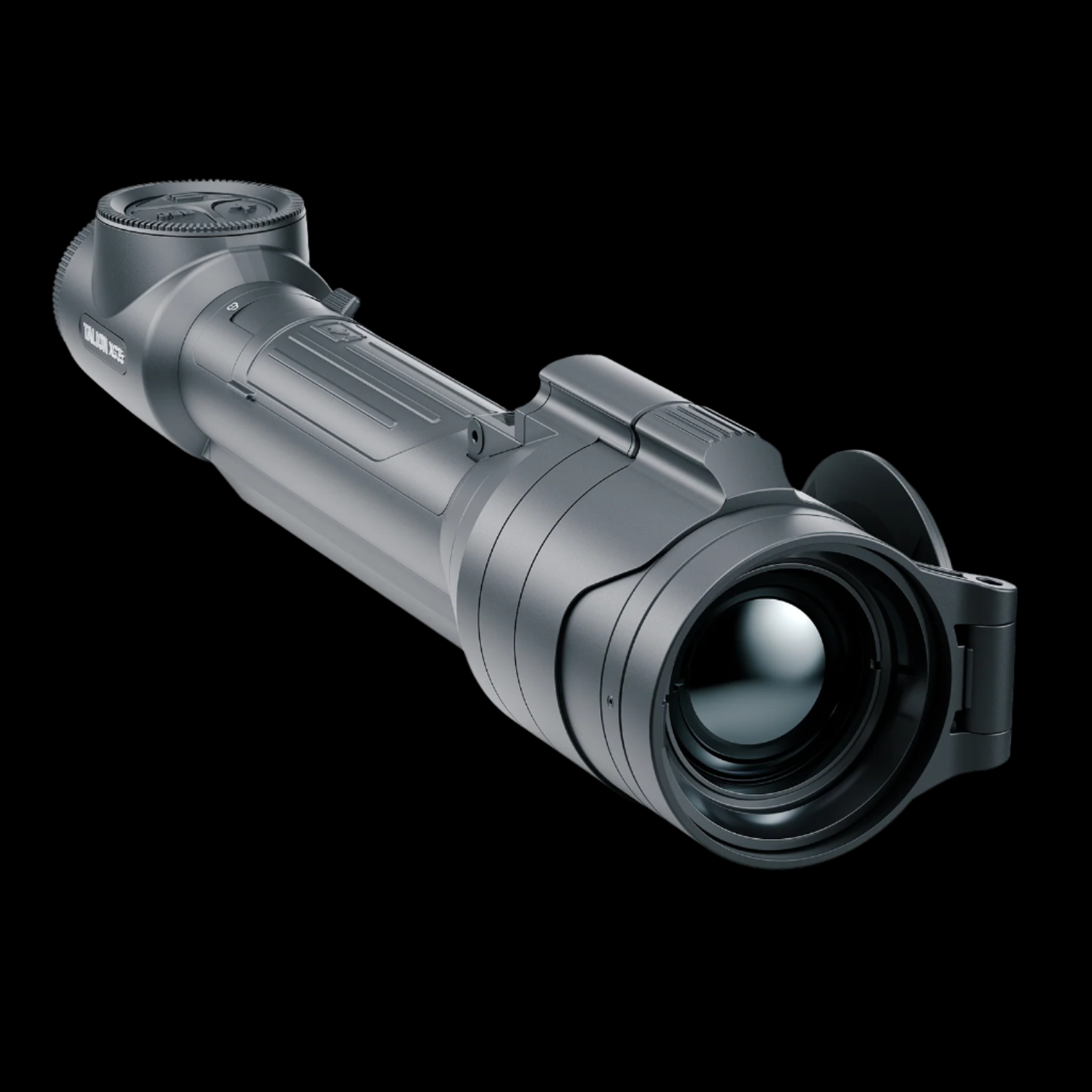

With the longest detection range and largest sensor resolution of the line, the Pulsar Talion XG35 is designed for shooting from slightly longer distances than the other two models.
Main specifications
Sensor
@ 12 µm 640x480
Objective lens
F35 / 1.0
Magnification, x
2 – 16 (x8 zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Detection range
1750 m
Reticle
Click range, H/V, mm at 100m
4200/4200
Click value, H/V, mm at 100m
21 / 21 (on minimum magnification) // produced after 09/2024: 15.2 – 2х, 7.6 – 4х, 3.8 – 8х, 1.9 – 16х
Sensor
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
Sensor NETD, mK
< 40
System NETD, mK
< 20
Frame rate, Hz
50
Optics
Objective lens
F35 / 1.0
Magnification, x
2 – 16 (x8 zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Eye relief, mm
50
Display
Type
AMOLED HD
Resolution, pixels
1024х768 // produced after 09/2024: 1440х1080
Video recorder
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
16
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
Environmental characteristics
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
Connections and compatibilities
Compatible mounts
Weaver U Mount, Weaver USQD Mount, Weaver LQD Mount
Supported application
Stream Vision 2
Shock resistance on the smooth-bore rifles, caliber
12
Max. recoil power on rifled weapon (Eo), Joules
6000
Power supply
Output voltage, V
3.0 – 4.2
Battery type
APS 5T
Capacity, mAh
4900
Operating time on battery pack, hat t=22°С
7
External power supply, V
5V; 9V (USB Type-C Power Delivery)
Weight & size
Body material
Magnesium alloy
Dimensions, mm
330x57x67
Weight, kg
0.78
Long operation time on a single charge
Talion is powered with a Pulsar APS 5T interchangeable, rechargeable battery. A single charge guarantees up to 9 hours of battery life (Talion XQ series), which covers the time of active use of the scope for a hunt. The battery cover design helps to accurately determine the correct position and makes it possible to quickly replace a flat battery with a new one in complete darkness by touch alone.
