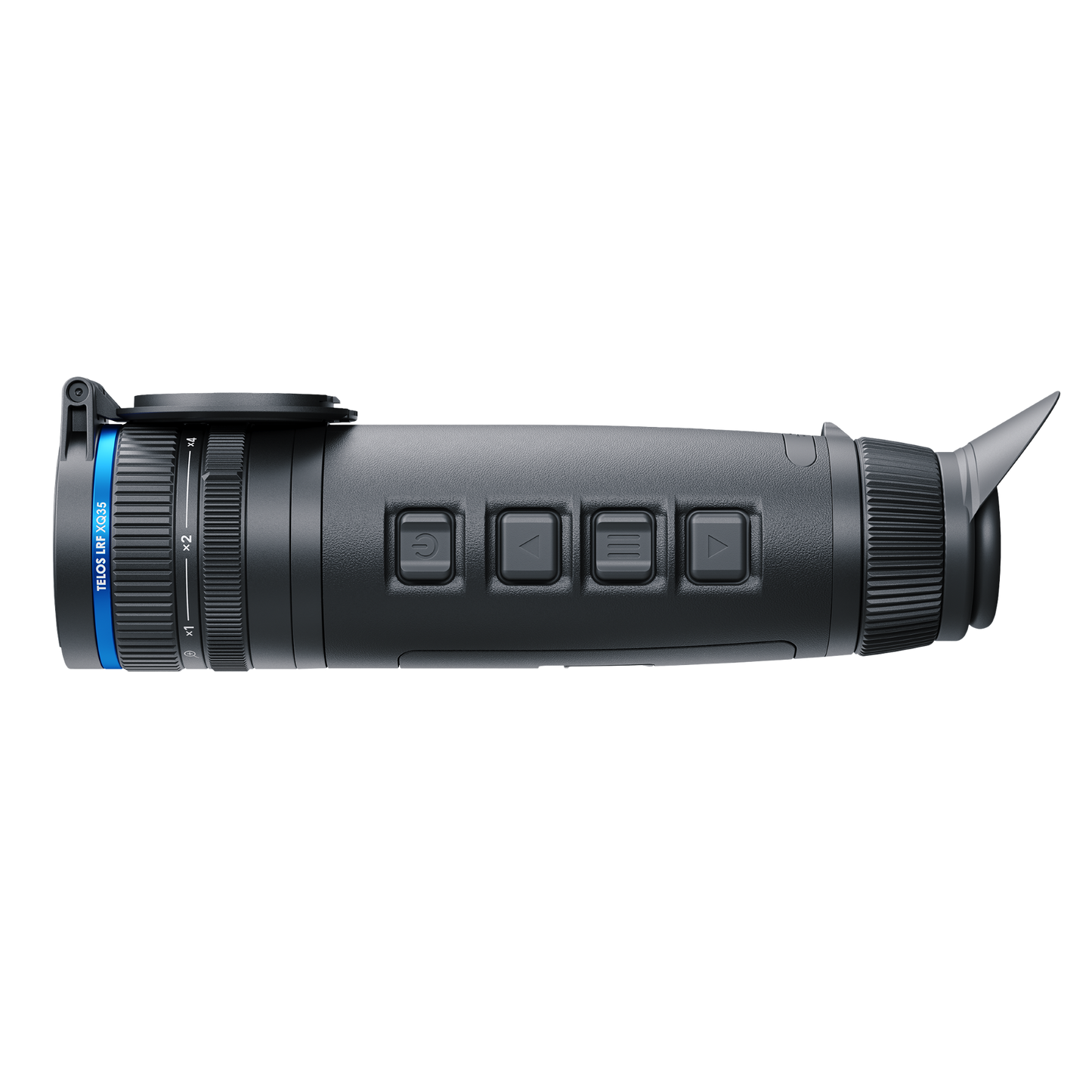

PULSAR TELOS LRF XQ35 THERMAL MONOCULAR
Telos is the new concept of upgradeable thermal imaging monoculars. It is the first line of thermal devices on the market to offer the option of technical hardware upgrade. The components of the Telos can be replaced with new ones featuring better characteristics. The user doesn’t need to acquire a new device every time a newer technology is being introduced. Telos is designed to be time resistant and future-proof. And to constantly adapt to the ever-changing needs of a hunter. With the new Pulsar upgradeability concept your Telos will become a renewable device. Or, if you wish, a device for life.
*The upgradeability program is in the pipeline and will be launched later this year.
Possible upgrade types:
-
Addition of the laser rangefinder for the non-LRF models
-
Sensor upgrade
-
Objective lens upgrade
Objective ring zoom control
You can ideally adjust the image in Telos with one hand − the focusing and smooth zoom rings are located on the lens in the classic layout, one by one, as in professional camera objective lenses. The consistent arrangement of the rings enables getting a clear image with the required magnification quickly and with minimal effort.
Intuitive user experience
For a more tactile and intuitive use of Pulsar flagship handhelds active the haptic feedback function in the short menu of the Telos. The unit will respond with short vibrations when pressing the control buttons.
Built for toughest conditions
Telos thermal imaging devices have been designed for use in the tough outdoors using and in the temperature range of -25 to +40 °C. The device is waterproof when fully immersed in water. The composite polymeric rubber-coated case possesses high operational qualities. The absence of protruding parts in the design, as well as the anatomically optimal housing shape of the Telos thermal imaging devices contribute to safety and comfort during prolonged use time.
Precise laser ranging up to 1000m
Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 metre for quick and error-free assessment of the situation.
Ergonomic, nonslip rubber-coated housing
The rubber-coated housing helps to securely hold the thermal imaging device in the hand in both dry weather and rain. The housing has exceptional wear resistance and perfectly withstands operation in a wide range of temperatures, including dusty and moist conditions, and it protects the device from falls. In addition, the housing is easily cleaned and keeps its original appearance for a long time.
Replaceable battery pack with direct plug & wireless fast charge options
The brand-new LPS 7i quick-change Li-ion battery guarantees more than 8 hours of operating time. LPS 7i doesn't require special chargers − just connect it to any network adapter via the USB Type-C port and charge it using the Power Delivery fast charging protocol in a short time. Moreover, the LPS 7i battery supports wireless charging.
Ergonomic and functional carrying case
A hunter must be fast-moving. A sign of good quality equipment is being at hand when needed, and invisible the rest of the time. Stylish on the outside, the Telos case is user-friendly and comfortable to carry. The thermal imaging device is quickly and easily removed from the case and placed in position. The system of optimal belt positioning distributes the device weight on the hunter's body, relieving the load from the shoulders, back and neck. The cover fits snugly to the body, without preventing the hunter from freely bending, turning, crouching, moving across country and using weapons. Additionally, the Telos case is equipped with straps for attaching it to a waist belt, as well as to equipment with a modular Molle fixation system, including backpacks and webbed gears.
Adaptable for left- and right-handed use
The vertical symmetrical layout of the controls allows Telos to be used with both hands with the same degree of comfort − the buttons are located in a row on the top panel, and the lens rings are used for focusing and changing magnification.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
|
Model |
LRF XQ35 |
|
SKU |
77512 |
|
Microbolometer |
|
|
Type |
uncooled |
|
Resolution, Pixels |
384x288 |
|
Pixel Pitch, µm |
17 |
| NETD, mK |
< 25 |
|
Frame Rate, Hz |
50 |
|
Optical Characteristics |
|
|
Optical Magnification, x |
3 |
|
Smooth Digital Zoom |
3 - 12 |
|
Digital Zoom, x |
x1 - x4 |
|
Lens Focus, mm |
35 |
|
Relative Aperture, D/f' |
1.0 |
|
Minimum Focus Distance, m/y |
5 / 5.5 |
|
Exit Pupil Diameter, mm/inch |
4 / 0.16 |
|
Angular Field of View (Horizontal x Vertical), degree |
10.7x8.0 |
|
Linear Field of View, m at 100 m |
18.7 |
|
Eyepiece Focus Range, Dioptre |
+4 / -5 |
|
Detection Distance for Deer-Sized Objects, m/y |
1300m / 1422yards |
|
Display |
|
|
Type |
AMOLED |
|
Resolution, Pixels |
1024x768 |
|
Operational Characteristics |
|
|
Power Supply, V |
3 - 4.2 |
|
Battery Type/Capacity/Nominal Output Voltage |
LPS7i Li-ion Battery Pack / 6400 mAh / DC 3.7 V |
|
External Power Supply |
5 V, 9 V (USB Type-C) |
|
Battery Run Time at t=22°C, hours* |
8.5 |
|
Degree of Protection, IP Code (IEC60529) |
IPX7 |
|
Operating Temperature Range, °C / °F |
-25 … +40 / -13 – +104 |
|
Dimensions, mm/inch |
224x66x87 / 8.82x2.6x3.4 |
|
Weight (with battery), kg/oz |
0.63 / 35.3 |
|
Video Recorder |
|
|
Photo/Video Resolution, Pixels |
1024x768 |
|
Video/Photo Format |
.mp4 / .jpg |
|
Built-in Memory |
64 GB |
|
Wi-Fi Channel** |
|
|
Frequency |
2.4/5 GHz |
|
Standard |
IEEE 802.11 b/g/n/ac |
|
Characteristics of the Rangefinder |
|
|
Wavelength, nm |
905 |
|
Measurement Range, m/y*** |
1000m /1094 yards |
|
Measurement Accuracy, m |
1 |
* Actual operating time depends on the extent of using Wi-Fi, integrated video recorder and integrated laser rangefinder.
** Reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
*** Depends on the characteristics of the object under observation and environmental conditions.
