Unmatched Precision
Introducing the Thermion 2 LRF 60 series: the premium line of thermal imaging riflescopes with 60 mm optics for long-range shooting. Leading the series is the flagship model, the Pulsar Thermion 2 LRF XL60, which combines a powerful lens with an HD resolution sensor for unmatched precision.
The newly designed Pulsar Thermion 2 LRF 60 series also features enhanced eyepiece optics with 65 mm eye relief, setting a new standard in its class, while increasing safety. Optimized for high-resolution microdisplays, the wide-angle eyepiece significantly boosts viewing comfort.
With these advanced features, the Pulsar Thermion 2 LRF 60 series stands out as one of the most powerful thermal riflescopes on the market, expanding the entire Pulsar Thermion 2 LRF range to fit every hunter’s needs.

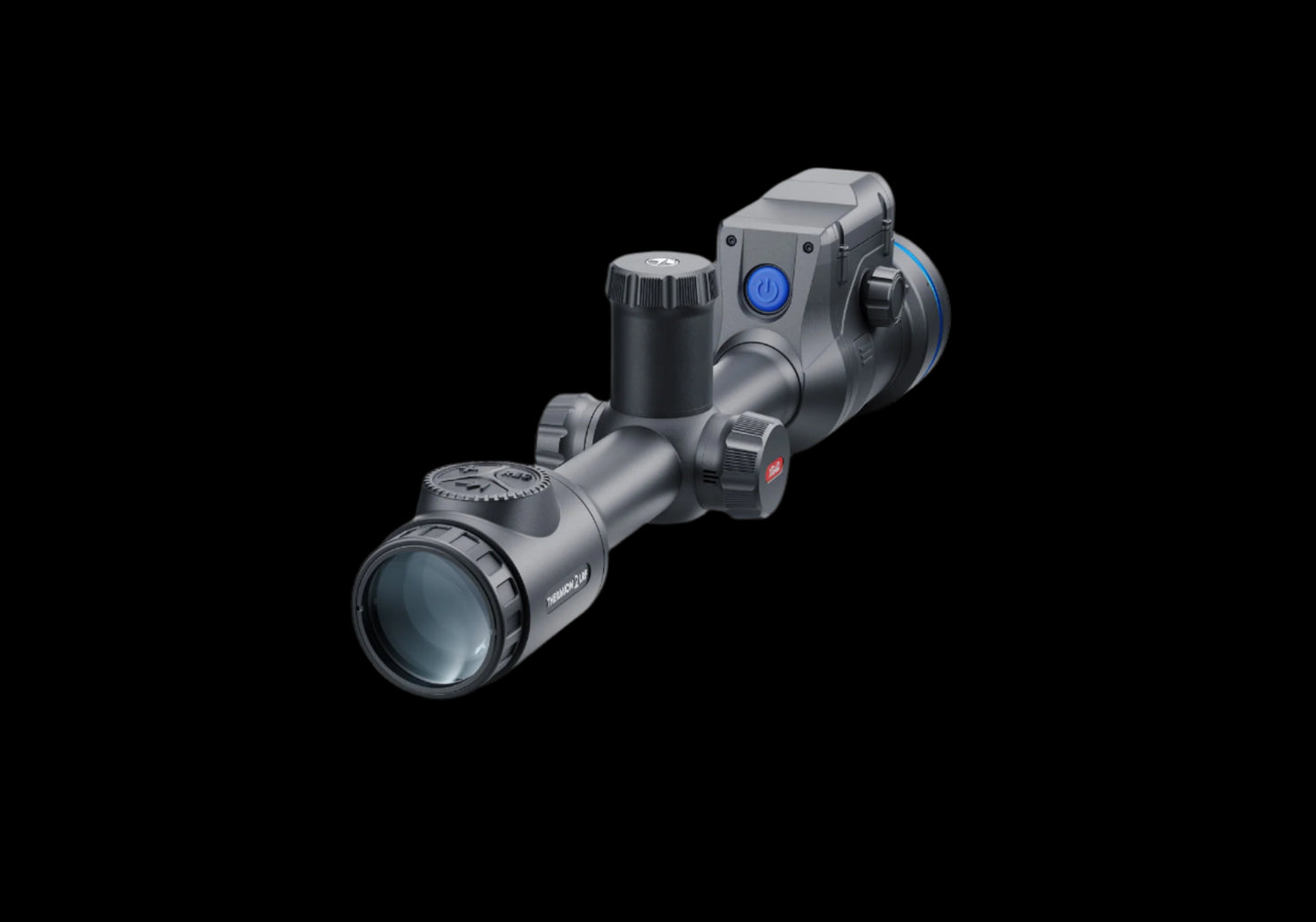

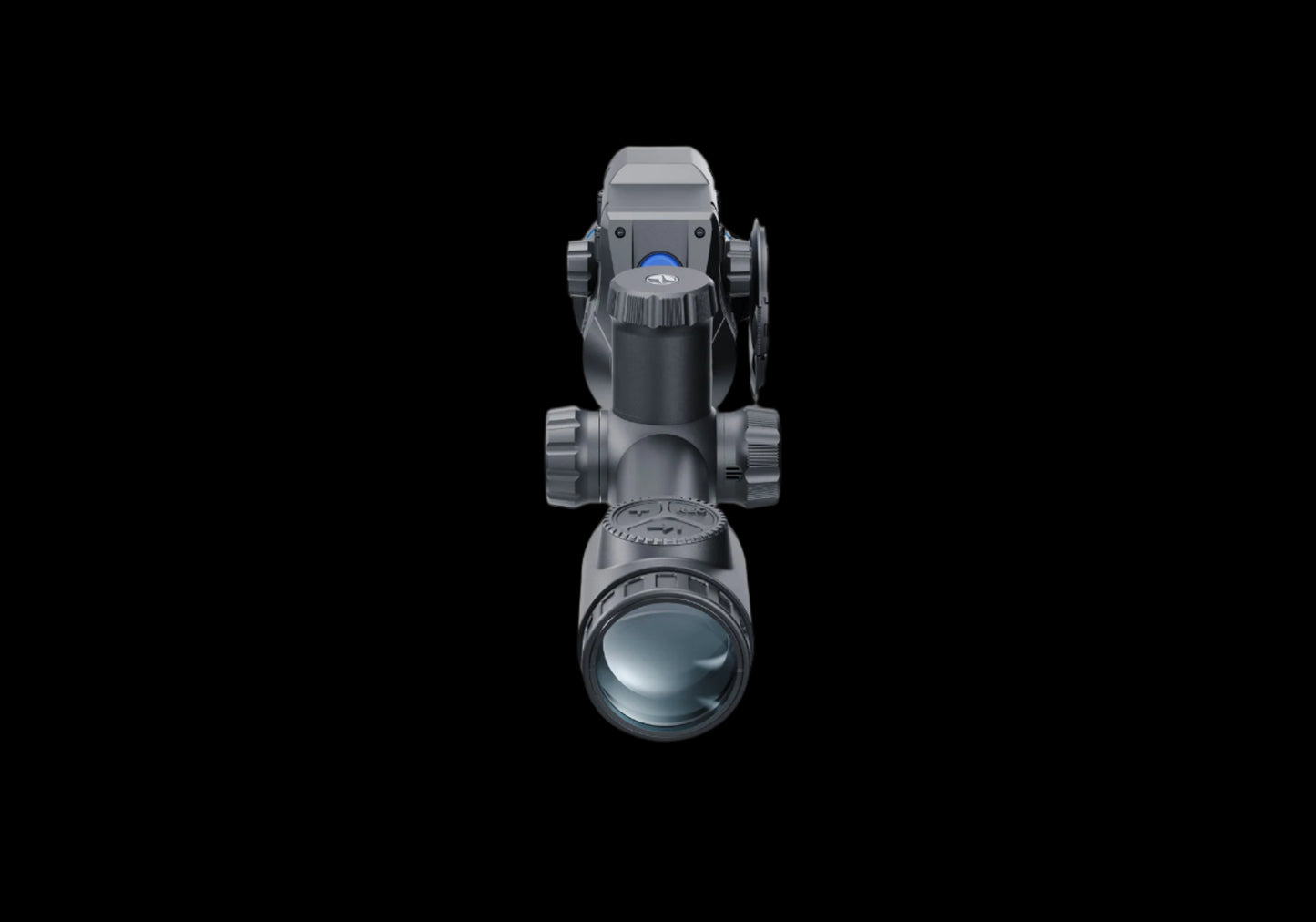

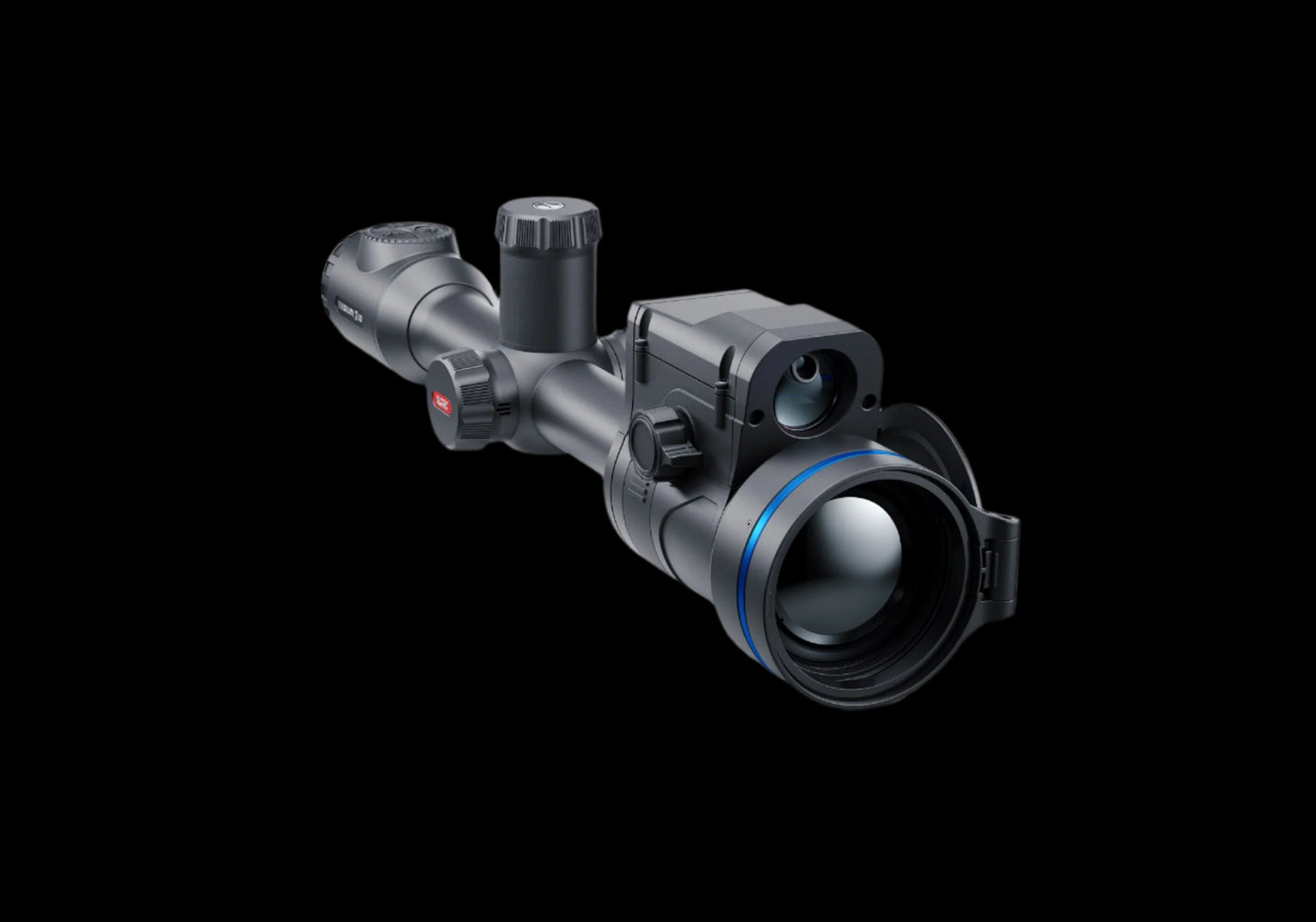

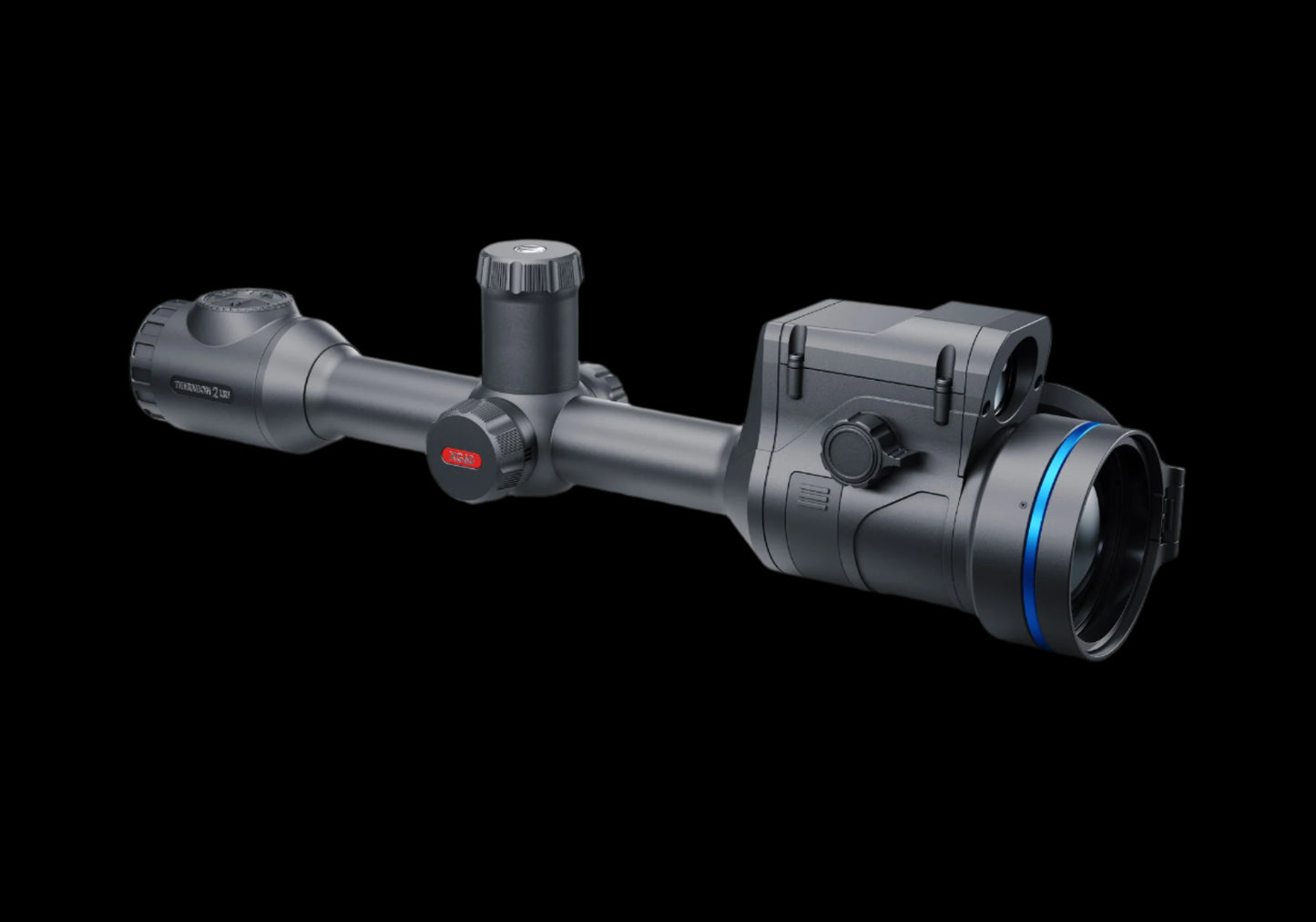

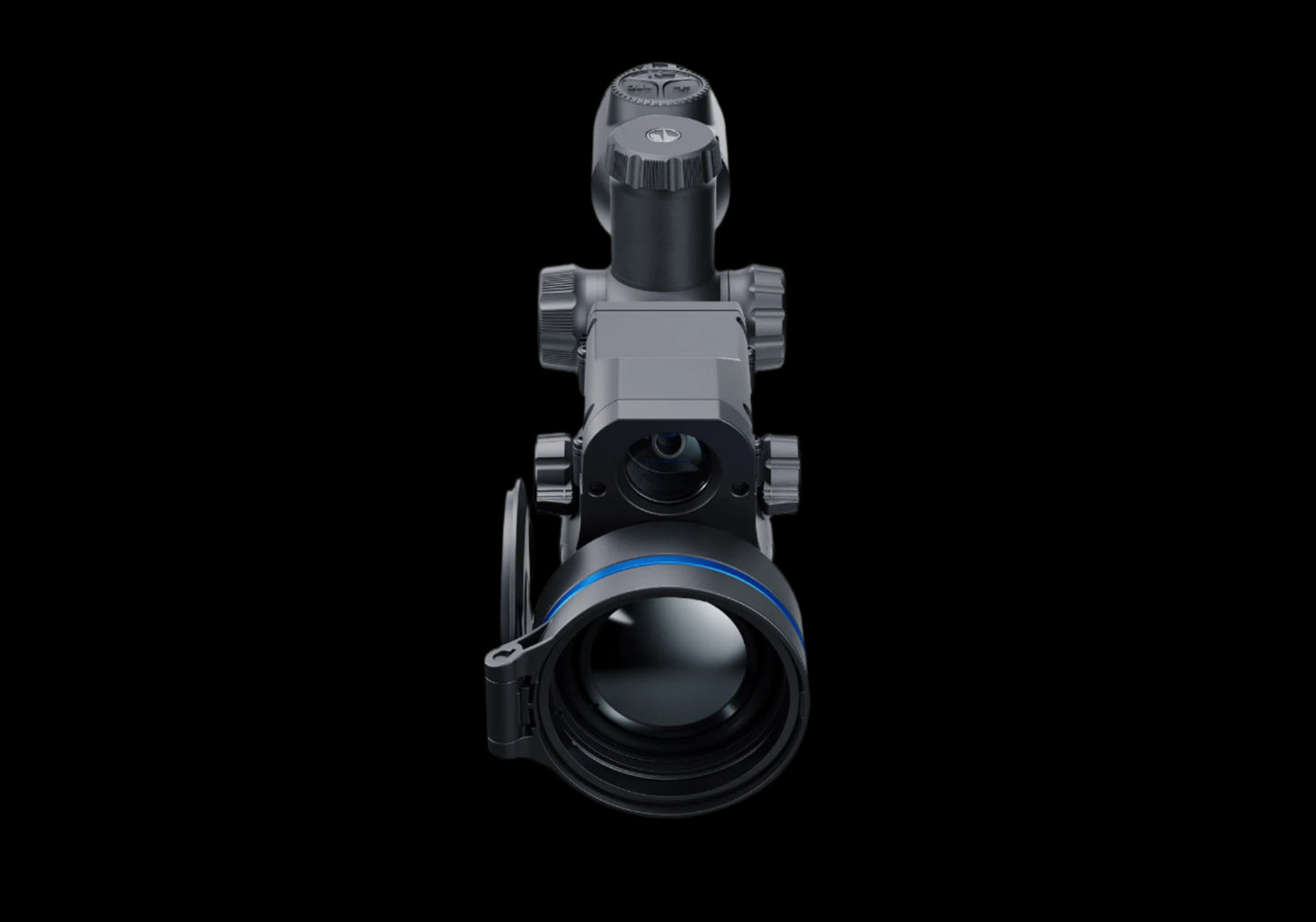

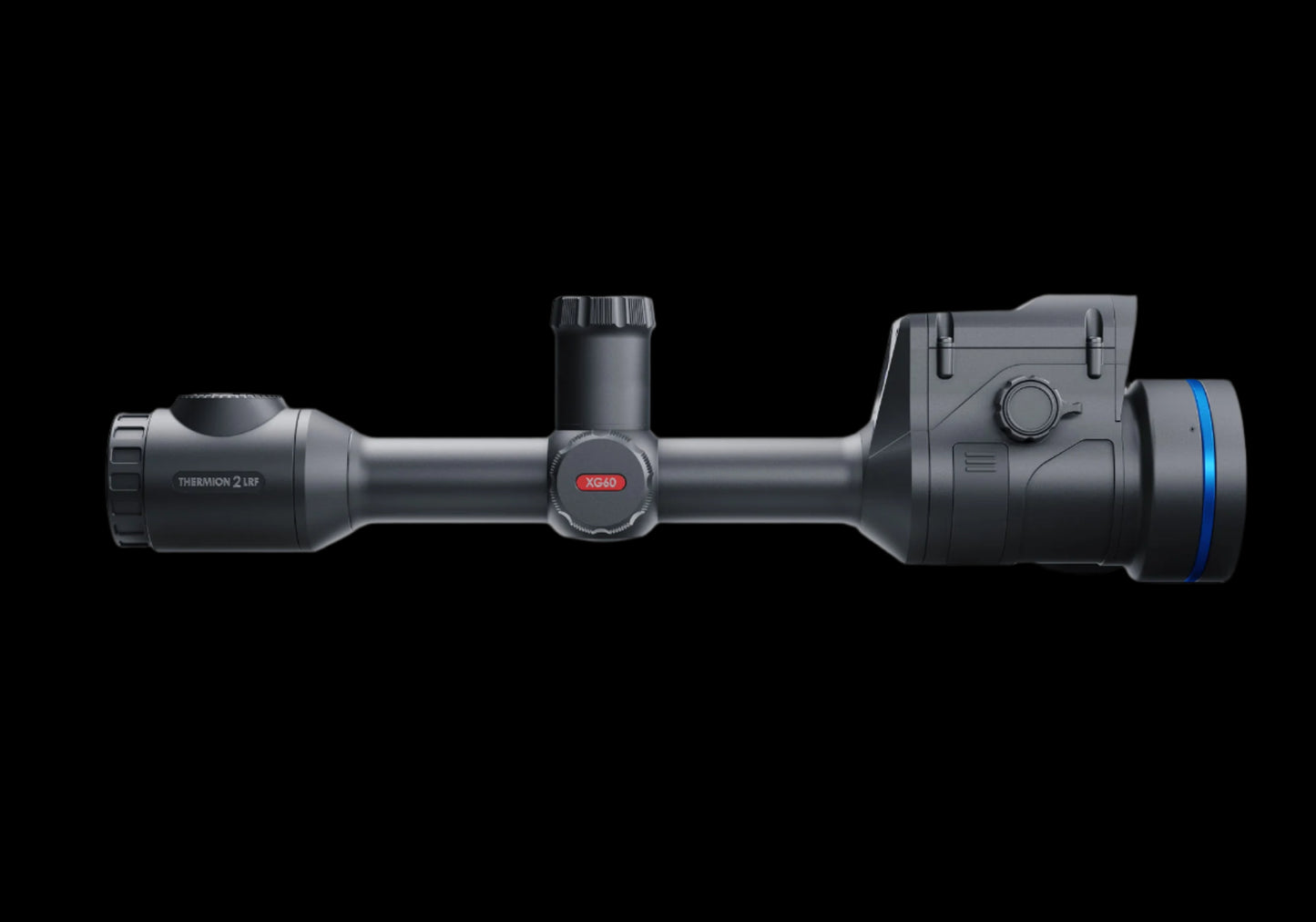

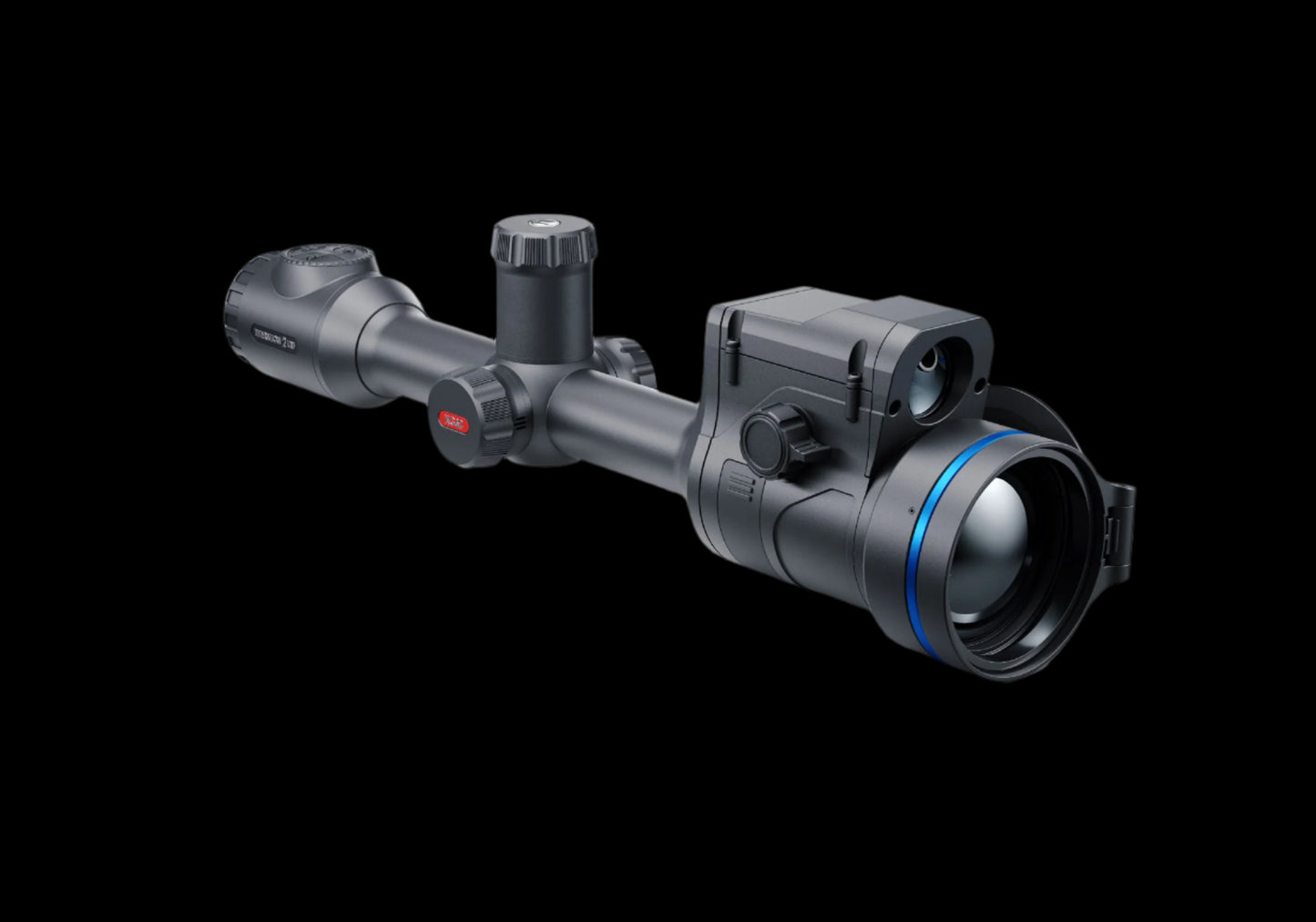

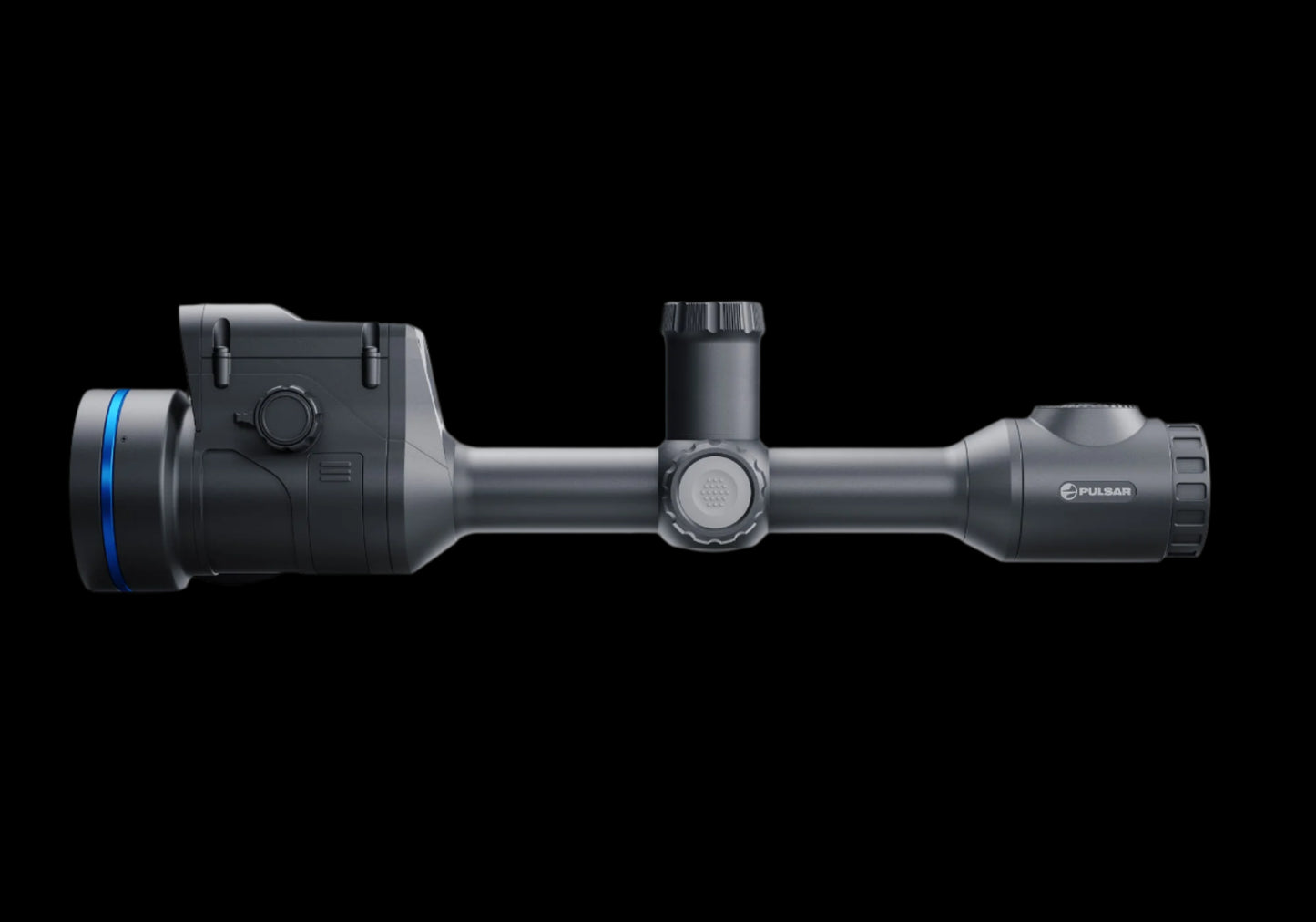

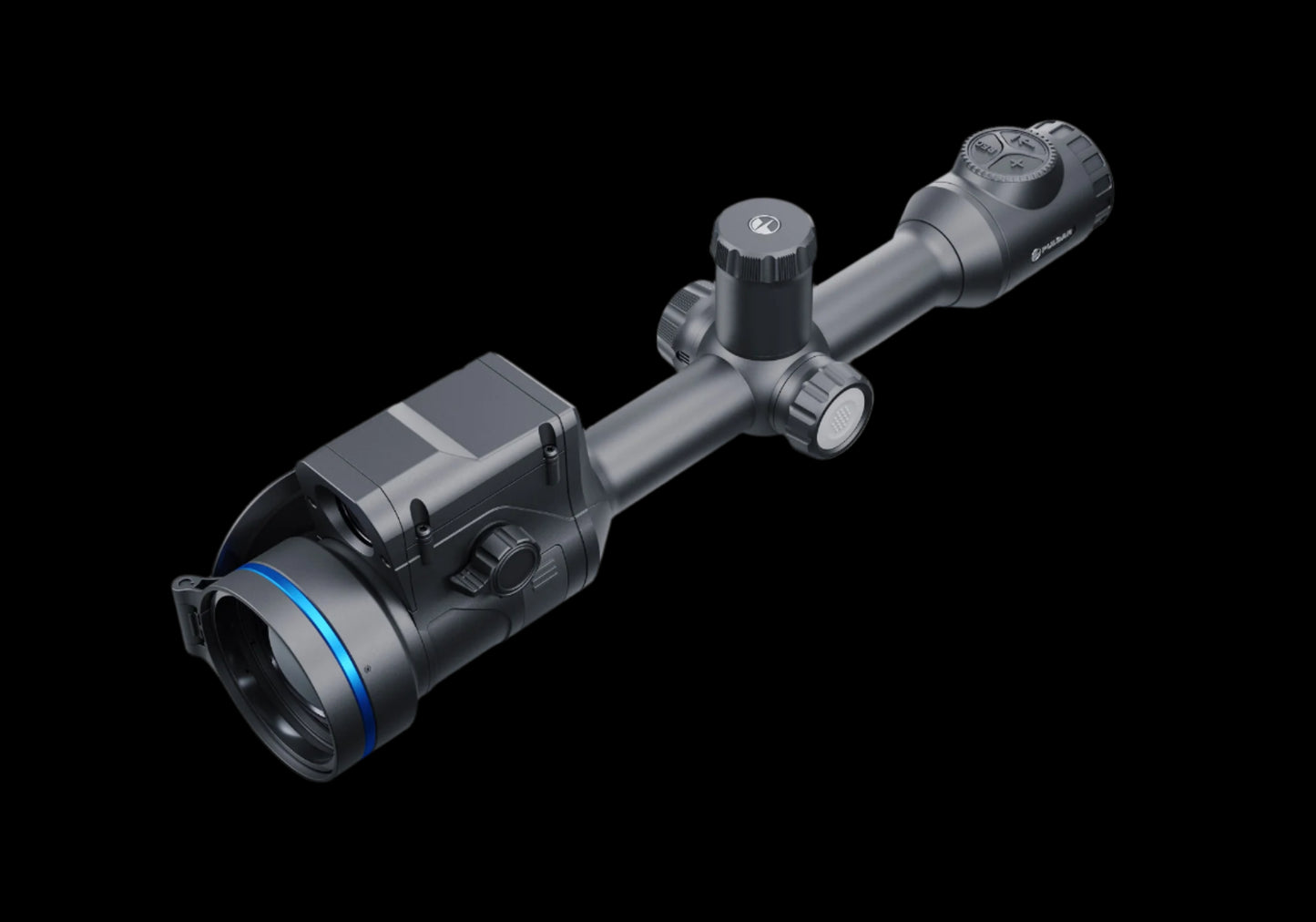

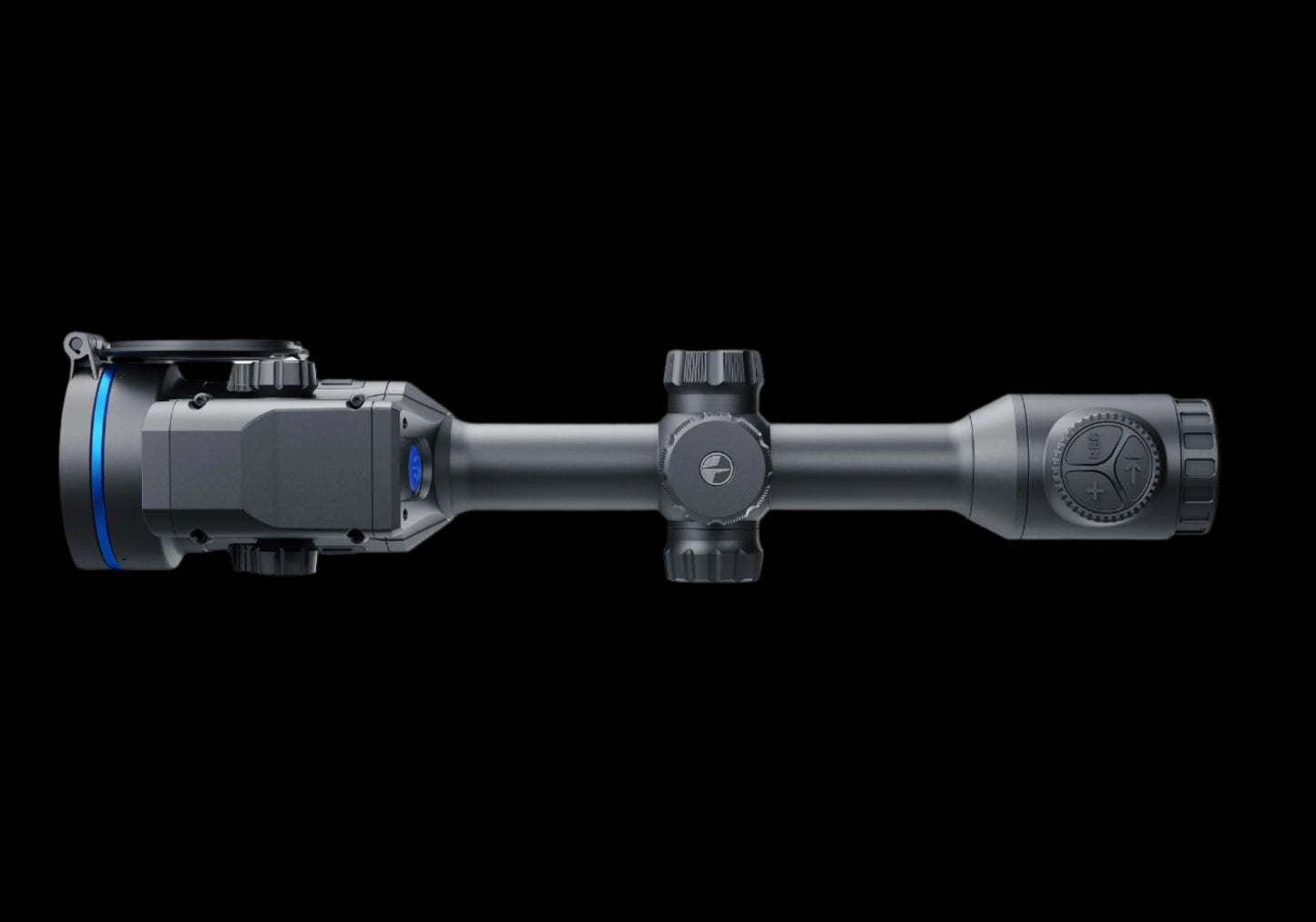

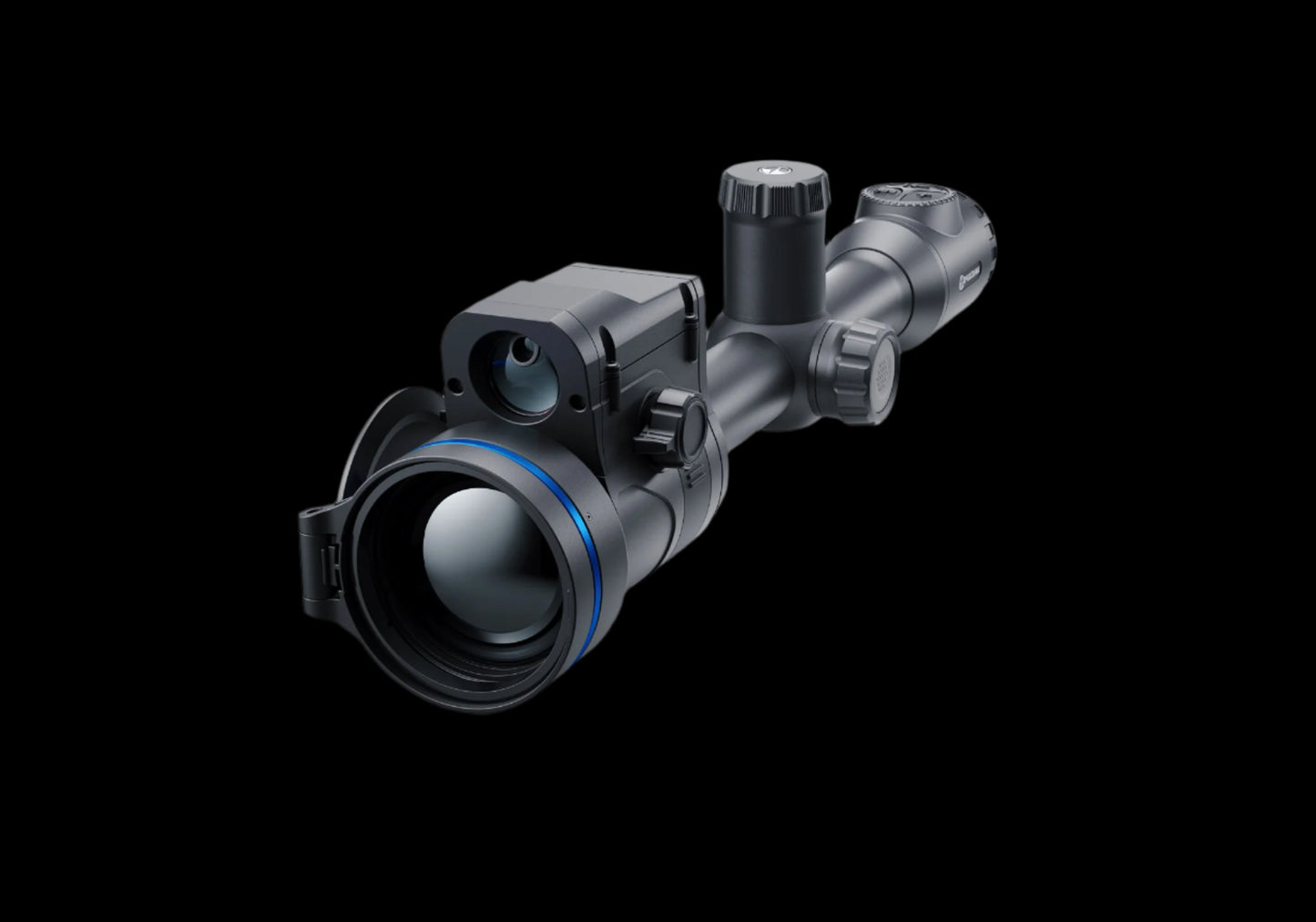

THERMION 2 LRF XG60
Premium HD-class optics
The top-class optics of the Pulsar Thermion 2 LRF series are designed for maximum image detail. The 60 mm lenses capture the smallest heat signals, while the 60 mm optics in the Thermion 2 LRF 60 are designed for long-range application.
High Definition Thermal Sensor
Sharp, richly contrasted thermal imaging is used for enhanced identification of animals, their extremities, and even the smallest details, i.e., branches, leaves, grass, and terrain.
Extreme image detail on high zoom
Variable magnification improves focus and overall object recognition at significant distances. The HD resolution models, the Thermion 2 LRF XL50 and Thermion 2 LRF XL60, maintain the highest level of image detail across the entire magnification range. The zoom changes either gradually in a 2x step or continuously for a customized FOV / magnification ratio for each specific scenario.
Precise laser range finding
Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder, with a range of up to 800 metres, is seamlessly integrated into a slim-design riflescope. The receiver and emitter are within the clearance limits of a single optical channel.
Integrated ballistic calculator for long-range shooting
The Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder gives the hunter a precise distance to the target. At the same time, the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment, upload it to the Thermion’s memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF into a highly accurate and efficient long-range aiming tool.
Wide field of view for easy scanning
The Thermion 2 LRF series allows you to choose the best field of view for your application. From 7.3 ° in the Thermion 2 LRF XG60 and 14 ° in the XL50 models, you’re sure to find the best FOV and magnification ratio for your needs.
Clear wide-angle eyepiece
The Pulsar Thermion 2 LRF 60 comes with an upgraded wide-angle eyepiece. The new optics are optimized specifically for use with high-resolution micro-displays, ensuring a clearer view and more comfortable observation with the 8 mm exit pupil.
Highest eye relief in class: 65 mm
Designed for long-range use, the Pulsar Thermion 2 LRF 60 line is also safe to use with high-calibre ammunition. The 65 mm eye relief is the highest in its class, ensuring both enhanced safety and flawless screen visualization.
High-precision ambidextrous lens focusing
An objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy for either left—or right-handed users.
Wireless remote control included
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions while rotating or pressing the encoder, operating fine adjustment and menu navigation. The buttons and encoder’s design, size and positioning are customized for use with both bare and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
| Model | LRF XG60 |
| SKU | 76577 |
| Microbolometer | |
| Type | uncooled |
| Resolution, pixels | 640×480 |
| Sensor NETD, mK | < 40 |
| System NETD, mK | < 20 |
| Pixel Pitch, µm | 12 |
| Frame refresh rate, Hz | 50 |
| Optical Specifications | |
| Lens, mm | F60 F/1.1 |
| Magnification, x | 4 – 32 |
| Eye relief, mm/inch | 65/2.56 |
| Field of view (H), °/m@100 | 7.3/12.8 |
| Diopter adjustment, D | -5/+2 |
| Detection distance (Object of “deer” type), m/y | 2800/3062 |
| Aiming Reticle | |
| Click value, mm@100 m – when magnifying, x | 10 mm – 4х
5 mm – 8х 2.5 mm – 16х 1.25 mm – 32x |
| Click range (H/V), mm@100 m | 2000/2000 |
| Display | |
| Type | Micro-OLED |
| Resolution, pixels | 2560×2560 |
| Operating Features | |
| Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
| Power Supply, V | 3–4.2 |
| Battery type / Capacity / Rated Output Voltage | Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)
Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
| External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Battery Packs (built-in APS5 and removable APS3) operating time at temp. = 22 °C, hrs* | 7 |
| Max. recoil power on rifled weapon, Joules | 6000 |
| Max. recoil power on smoothbore weapon, caliber | 12 |
| Degree of protection IP code (IEC60529) | IPX7 |
| Operating temperature, °С / °F | -25 – +50 / -13 – +122 |
| Dimensions with an eyecup, mm/inch | 442х78х98 / 17.4×3.1×3.9 |
| Weight (with removable battery), kg/oz | 1.2 / 42.3 |
| Video Recorder | |
| Photo / video resolution, pixels | 1280×960 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 64 GB |
| Wi-Fi Channel** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Bluetooth | |
| Wireless Protocol | BLE 4.2 |
| Laser Rangefinder | |
| Wavelength, nm | 905 |
| Max. Measurement Range, m/y*** | 800 / 874.9 |
| Measurement Accuracy, m | 1 |
* The actual operating time depends on the intensity of using Wi-Fi, video recorder, Bluetooth and laser rangefinder.
** The reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
*** Depends on the characteristics of the object under observation and environmental conditions.
