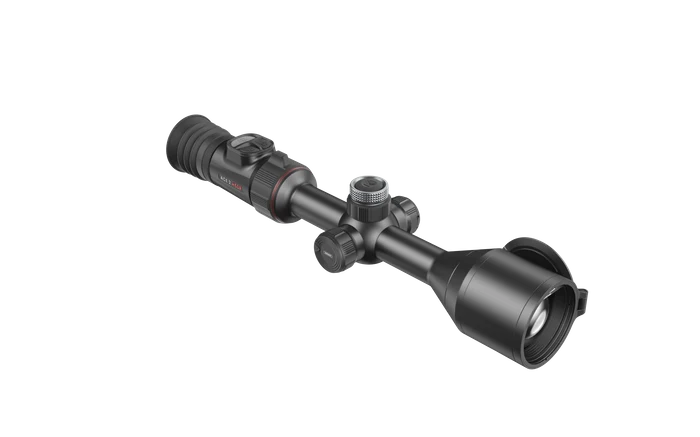

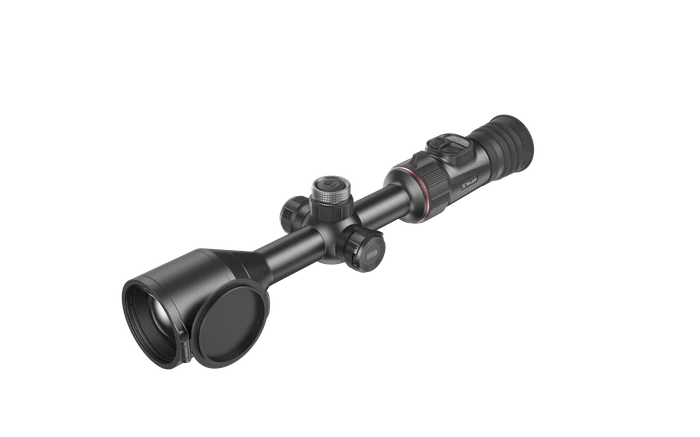

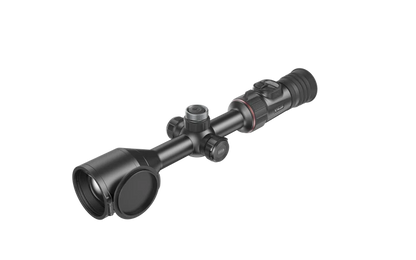

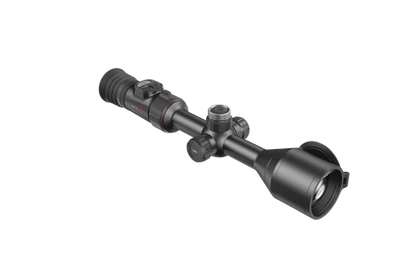

Nocpix ACE 2 H50R Thermal Scope – Longer Reach with LRF 2.0 and Ballistics

Integrated LRF 2.0 and Ballistic System

LRF 2.0 delivers distance data with 11% sharper optics and 57% faster ranging in tough conditions, out to 1200 m (±1 m). The onboard ballistic system works out the hold using distance, angle, wind drift and environmental factors so you can take a confident shot when it counts.

640 × 512 Sensor, NETD ≤12 mK

A 640 × 512, 12 µm thermal sensor with NETD ≤12 mK resolves subtle heat differences into sharp, high-contrast imagery. With R+ 2.0 AI enhancement, the H50R is built for clear identification and confident shots at distance.

50 mm F0.9 Objective

The F50/0.9 objective tightens the view to 8.8° × 7.0° (15.4 × 12.3 m at 100 m), with 3–6× optical magnification and up to 24× maximum magnification for longer paddock work.

Detection range is up to 2600 m (1.7 × 0.5 m target, Pn = 99%).

Ocular Zoom 2.0

60 mm eye relief and a 10 mm exit pupil give up to 25% longer eye relief than the previous generation. Lossless hybrid zoom keeps reticle accuracy steady through the zoom range for clearer, more comfortable viewing at any magnification.

Magnesium Body and Low-Temp Battery

The high-strength magnesium alloy chassis is about 25% lighter than the previous generation. Runtime is up to 8 hours at 22°C — about 14% longer than before — with solid cold-weather performance. External Type-C power keeps you going when you need a top-up.

Intelligent Tracking and Central Focus

Integrated laser ranging and an electronic compass give instant target coordinates from a single measurement. The centrally placed focus wheel lets you dial focus without breaking your aiming position, even in low light.

Dual Clarity Mode and 5G Wi-Fi

Motion Mode keeps imaging smooth on moving targets. Still Mode sharpens fine detail for identification. One-tap app pairing remembers your device, and upgraded 5G Wi-Fi pushes transfers up to about 20 MB/s for video downloads and firmware updates. Photo and video recording, recoil-activated video, gallery playback and 64 GB of onboard memory are all built in.

Specifications
