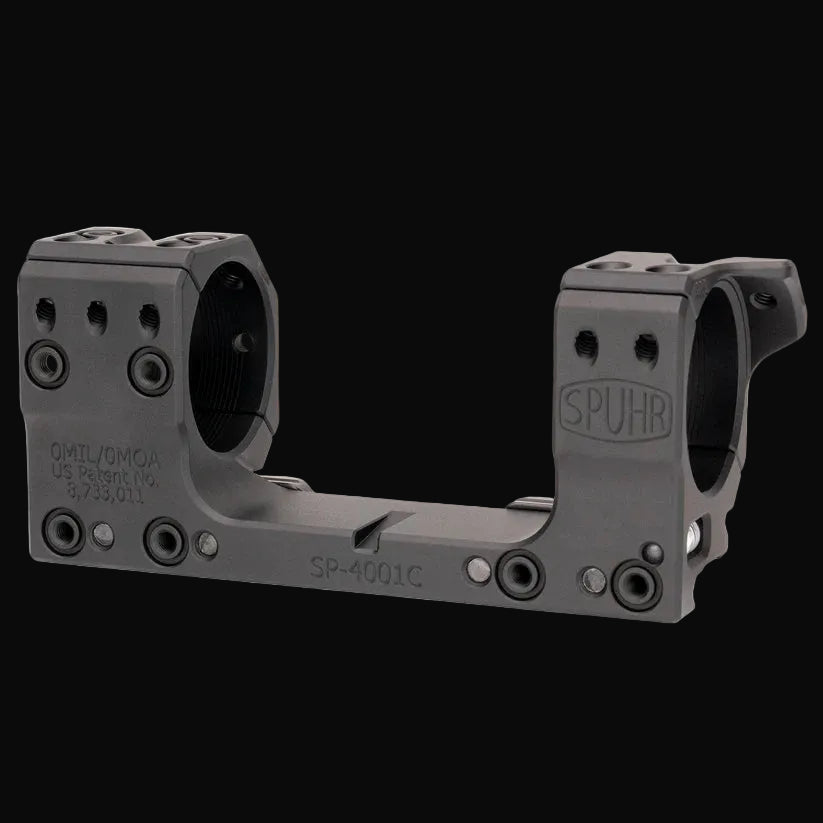

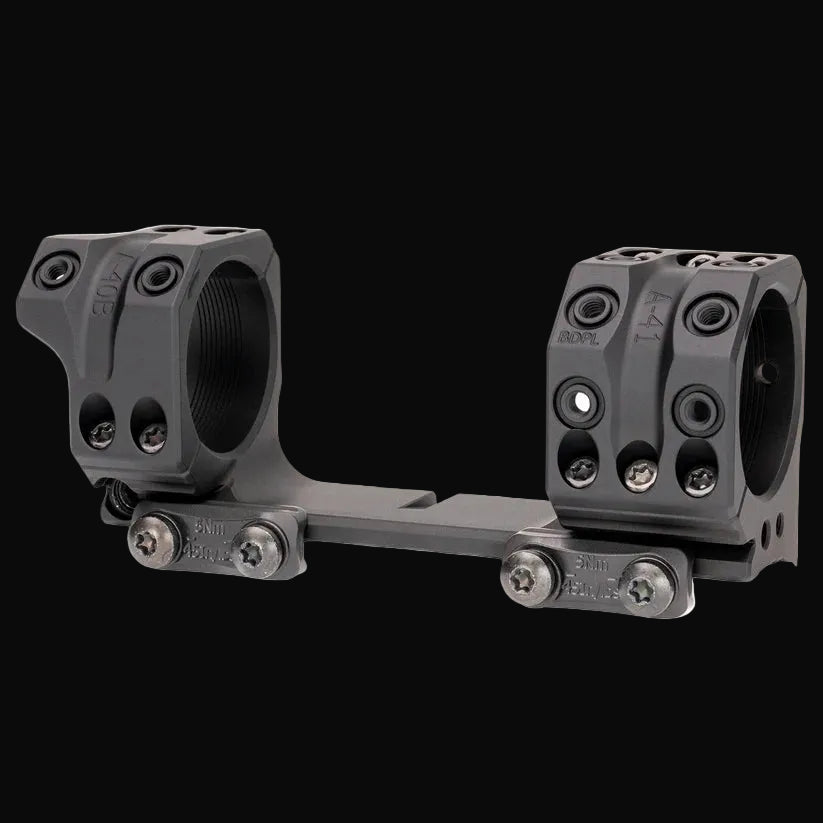

SP-4001CM SCOPE MOUNT Ø34 H30mm/1.181" 0MIL PIC Gen3, MIL

Features a two-piece hardened steel clamps.

0 MIL/0 MOA
Height: 30 mm/1.18”
Clearance: 8 mm/.314" (from the bottom of the tube to bridge of the mount body)Length: 120 mm/4.73” (body)
130 mm/5.12" (OAL)
Weight: 232 g/8.2 oz

10-degree wedge included

Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.

The IDEAL SCOPE MOUNT SYSTEM series of mounts features seven sets of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011).

The mounts are machined from billet 7000 series aluminum and feature dual hardened steel side clamps for increased durability. All aluminum parts are hardcoat anodized and the side clamps are Cerakoted. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance and come pre-waxed from the factory to ensure proper torque values.

The mount is shipped complete with a manual and a “wedge” leveling key.

NOTE: The SP-4001CM is designed for use on rifles with MIL-STD-1913 or STANAG 4694 rails and is especially suitable for bolt action rifles with 1-piece Picatinny rails. The SP-4001C will fit most 34 mm scope tubes including scopes with extended erector housings.
