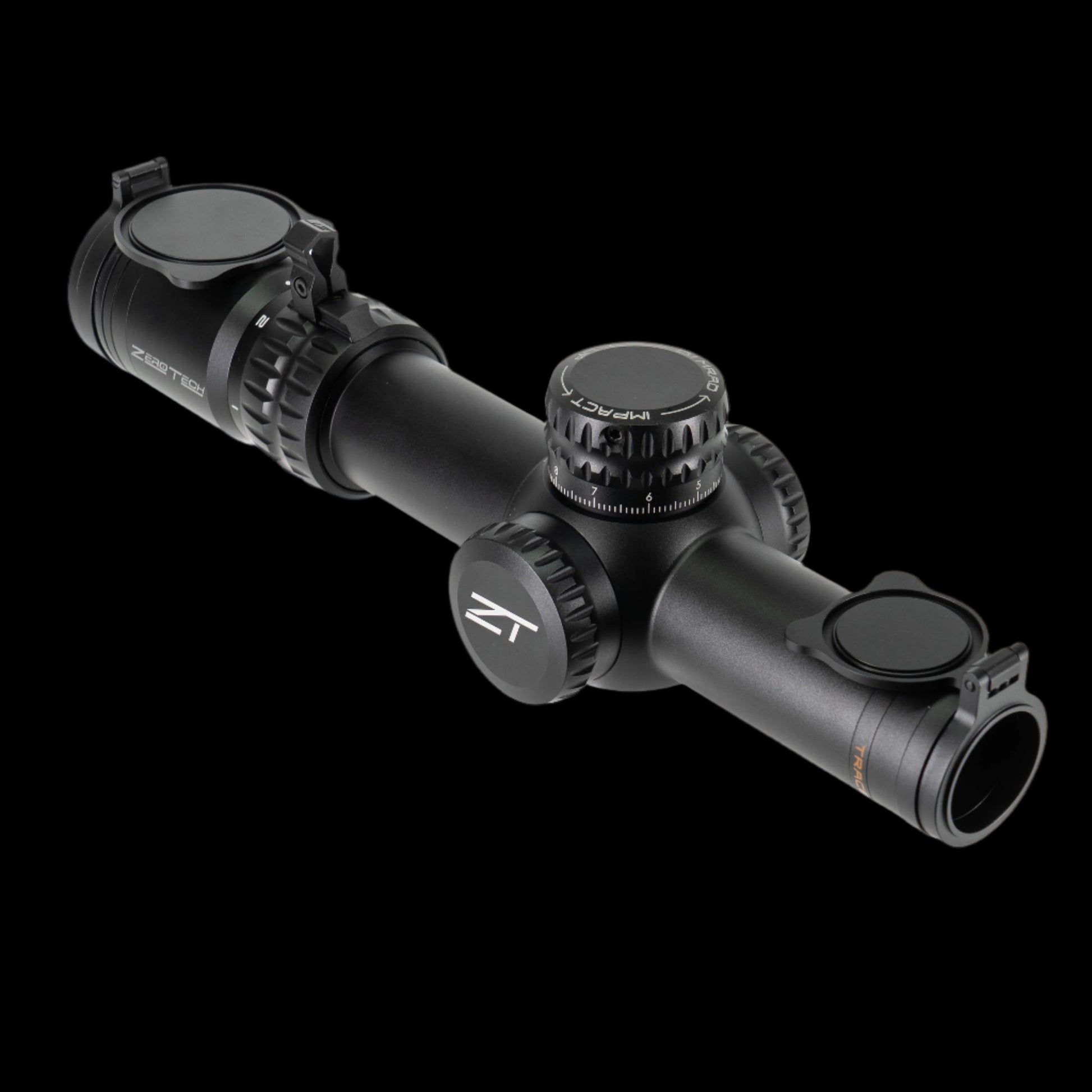

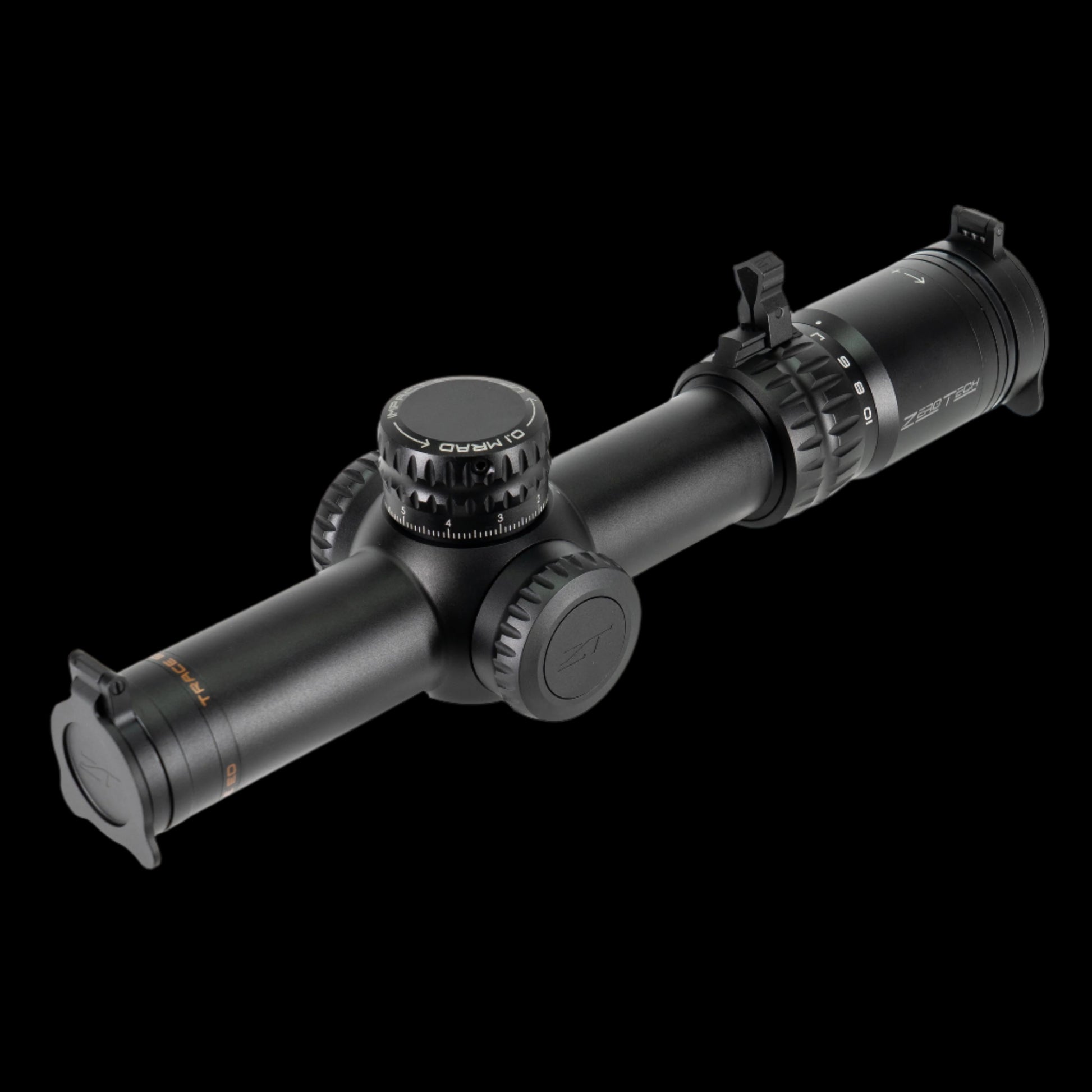

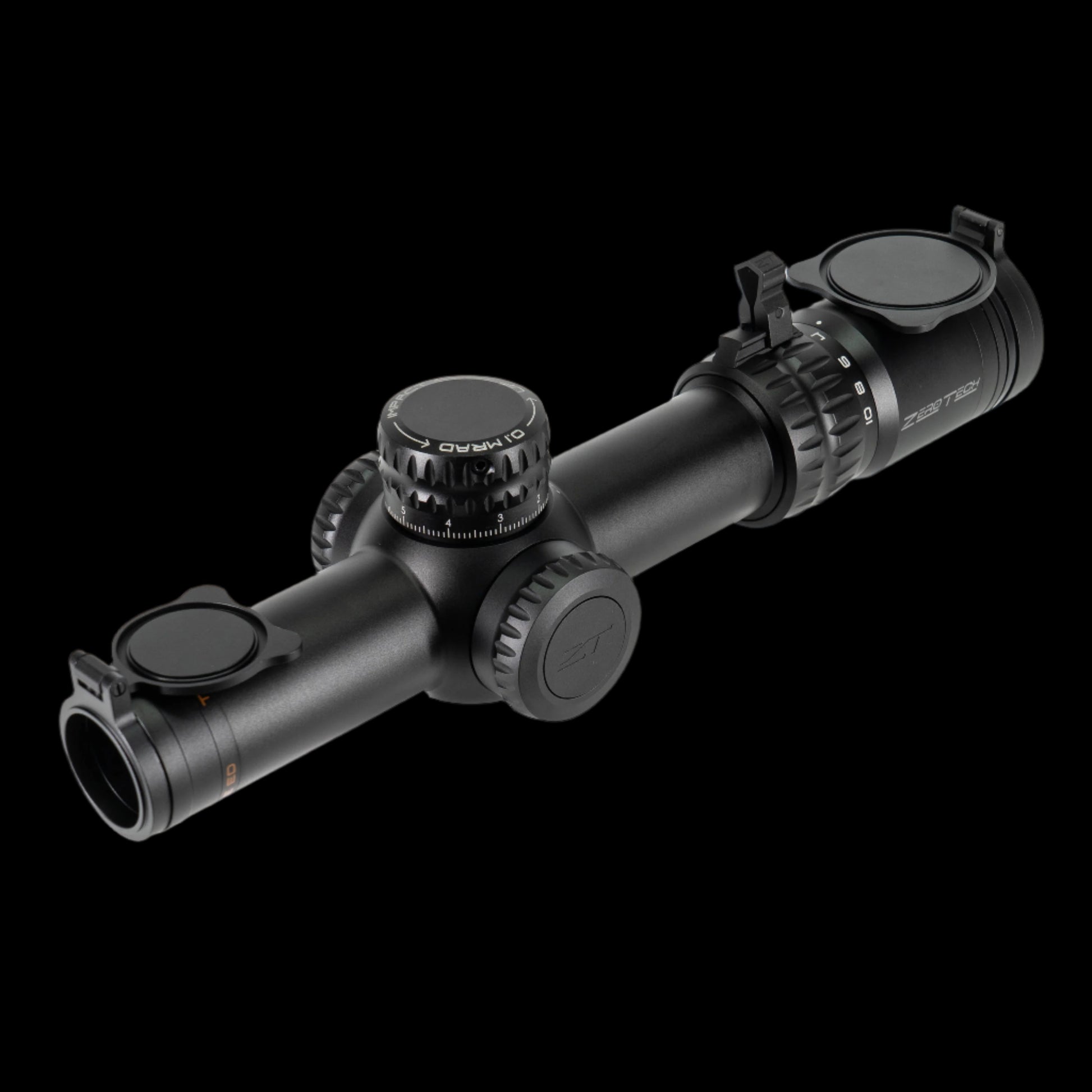

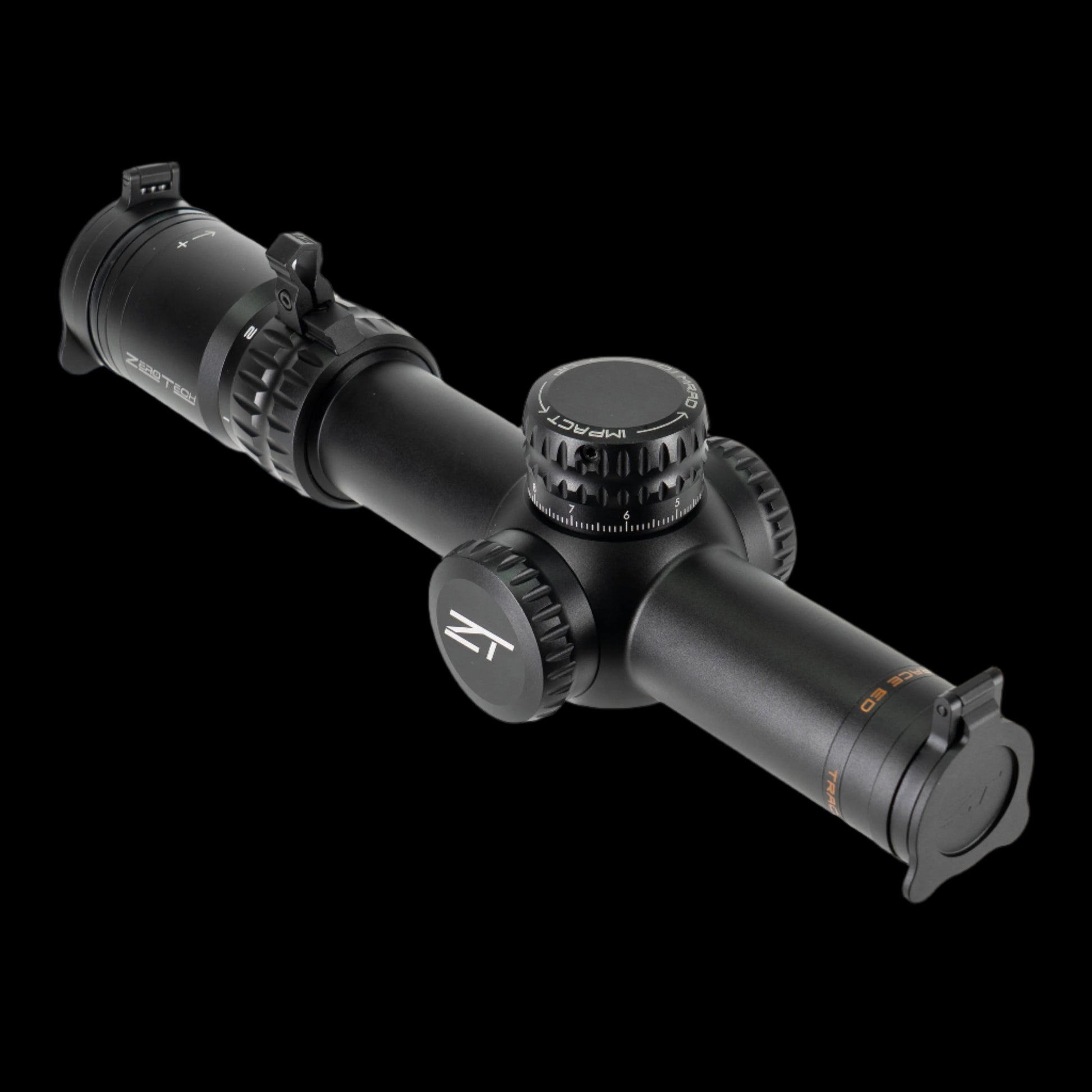

1-10×24 LPVO RMG-L Illuminated
The Trace ED 1-10×24 LPVO combines advanced optical performance with robust engineering for those who need clarity and responsiveness across a wide magnification range. Featuring true 1x performance, ED glass, and a digitally controlled first focal plane reticle, it delivers premium functionality in a compact, streamlined platform—perfect for both wide-view observation and detailed long-range visual tasks.
- True 1–10x Magnification: Delivers both-eyes-open responsiveness at 1x and precision at 10x.
- ED Glass System: Superior resolution, light transmission, and colour accuracy throughout the zoom range.
- RMG-L Reticle (FFP): Optimised for variable power use—clean and simple at low power with detailed references at high magnification.
- Digital Illumination Control: Push-button brightness settings for quick, fine-tuned adjustments.
- Locking Elevation Turret + Zero Stop: Helps maintain consistent reference points in dynamic conditions.
- Capped Windage Turret: Protected and streamlined for rugged use.
- Removable Throw Lever: For fast magnification changes when every second counts.
- Premium Aluminium Flip Covers: Tool-free adjustment and enhanced lens protection included.
DETAILS
The Trace ED 1-10×24 LPVO redefines versatility in Low Power Variable Optics. Built for shooters who demand maximum performance across all ranges, this scope offers a rare combination: true 1x capability with expansive situational awareness, and precise, clear images at 10x magnification. The result? You get uncompromised control in close quarters and at extended distances.
Its RMG-L reticle—specifically designed for LPVO use—remains uncluttered at low power and reveals advanced holdover and windage stadia as you zoom in. The illuminated center crosshair provides a clean aiming point when light is low, and the digital illumination system makes on-the-fly adjustments effortless.
Crafted with ED lenses and housed in a 34mm 6061-T6 aluminum body, the Trace ED ensures outstanding clarity, durability, and reliability. Locking elevation turrets with zero stop, capped windage turrets, and premium aluminum flip caps round out this professional-grade optic.
Whether for competition, duty, or tactical applications, the Trace ED 1-10×24 delivers performance once reserved for scopes twice the price.
SPECIFICATIONS
| Model Number/SKU | TRED11024F-IR |
| Magnification Range | 1-10x |
| Objective Lens Diameter | 24mm |
| Maintube Diameter | 34mm |
| Parallax Adjustment | Fixed at 100 meters |
| Eye Relief | 3.7″ (94mm) |
| Field of View @ 100 Meters | 39.1m (1x) – 3.91m (10x) |
| Field of View @ 100 Yards | 117.3 ft – 11.73 ft |
| Turret Adjustments | 0.1 MRAD per click, 10 MRAD/revolution |
| Elevation Travel | 34 MRAD |
| Length | 10.35″ (263.1mm) |
| Weight | 25.64oz (727g) |
| Illumination | Yes – Digital control |
| Available Reticle | RMG-L (FFP) LPVO specific |
| Tube Material | 6061-T6 Aluminum |
| Lens Coating | Weathershield protection |
| Flip Covers | Precision aluminum included |
![Trace ED_1-10x24 [TRED11024F-IR] elevations](https://zerotech.com.au/wp-content/uploads/2025/08/Trace-ED_1-10x24-TRED11024F-IR-elevations.jpg)

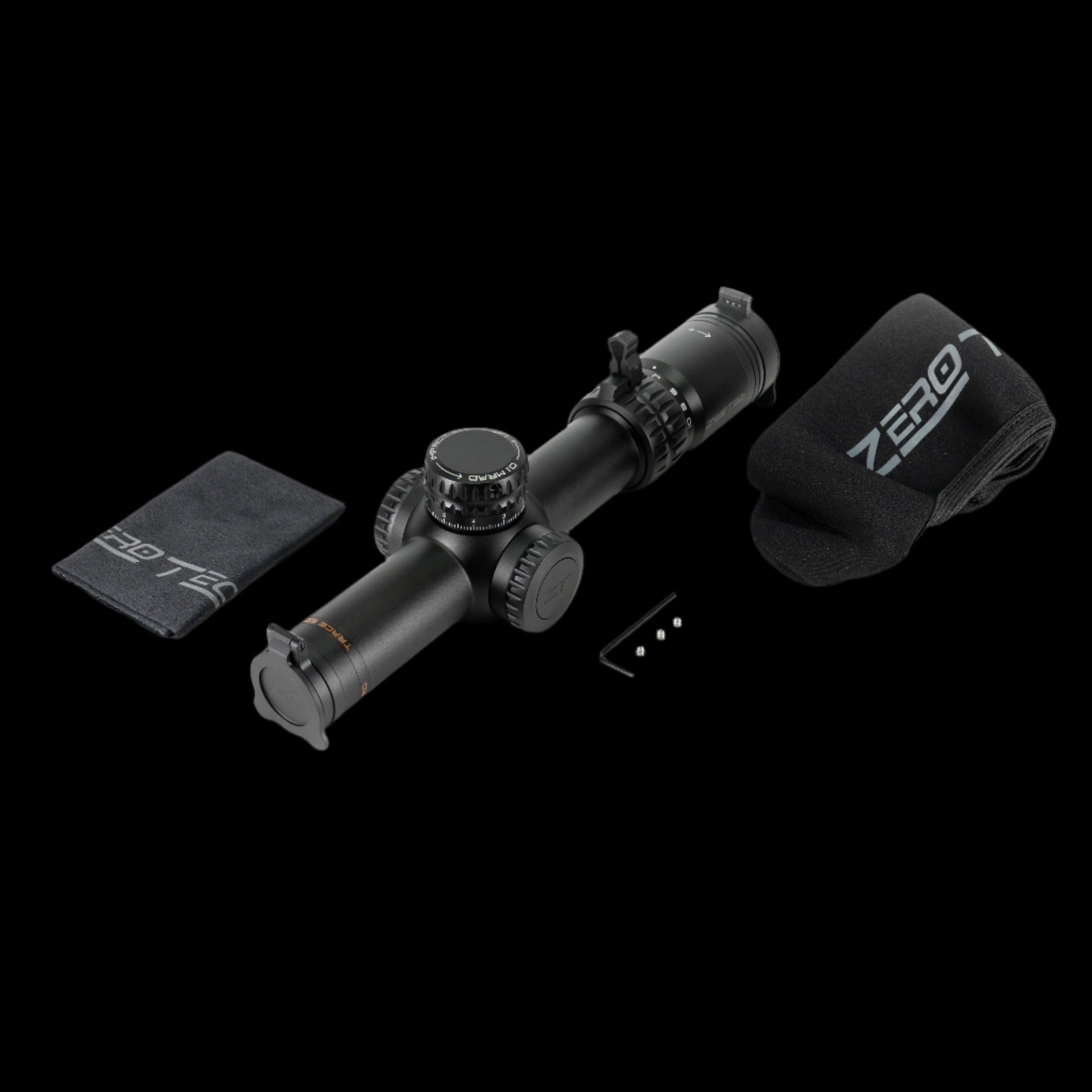

IN THE BOX
- Trace ED 1-10×24 LPVO Scope
- Aluminum Flip-Up Lens Covers
- Removable Throw Lever
- Neoprene Scope Cover
- Microfiber Cleaning Cloth
- Instruction ManualIn the Box
RMG-L Illuminated (LPVO Specific) Reticle
Based on our popular RMG design, the RMG-L reticle is optimised for Low Power Variable Optics while retaining many of the features and benefits for precision shooting applications. A central 2 MRAD segmented circle facilitates rapid and precise shot placement. At lower magnification, it simulates red dot performance under illumination, assisted by heavy bars located at 12, 3, 6 and 9 o’clock positions.
